2 Channel Solid State Relay 5V DC Low Level Trigger Power Switch Compatible with Arduino and Raspberry Pi

AZ-Delivery
Select discount: 1x Set
Price:
£8.00

Tax included

✅ This 2-channel relay board has a fast switch and a strong anti-interference capability. The high-quality components, which are integrated in a small housing, ensure a stable performance.
✅ The solid-state relay with fuse ensures the safe use of the module.
✅ Our module uses a low-level-signal-trigger mode.
✅The operating voltage of this relay is 5V DC.

Important downloads and links

Description

The 2 channel solid state relay (SSR) is free of moving parts thanks to solid state technology. As a result, this relay is faster and more reliable than a traditional magnetic relay. The specific design of these relays allows for a load of 100-240V AC with a current rating of 2A. In addition, each output is protected from overload by a pico fuse. The use of a low-level trigger makes this relay compatible with all microcontrollers with at least a 3.3V logic level.














Technical features:

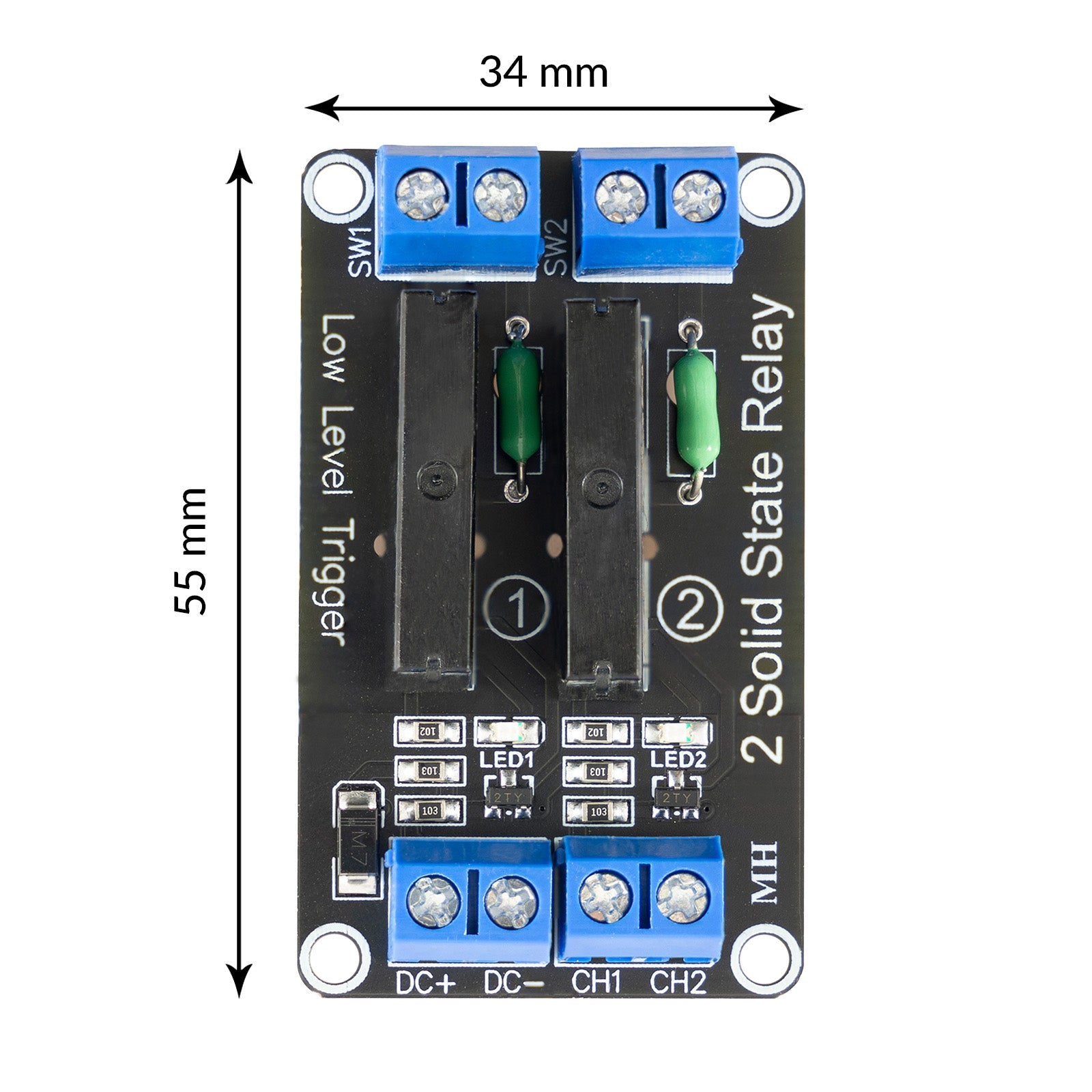

Size 55 * 33 * 25mm
Weight 21.5 g
Supply voltage 5V
Trigger mode Low level trigger
Static voltage 0mA
Load current 2A
Maximum operating current 48.8mA
Module lifetime 10 million times

Practical high performance module:

Compared with the traditional mechanical relay, the solid state relay (SSR) has many advantages: It has a longer life, much higher turn-on and turn-off speed, and is noiseless.

High quality:

Go for high quality in your relays and use the solid state relays from AZ-Delivery.
