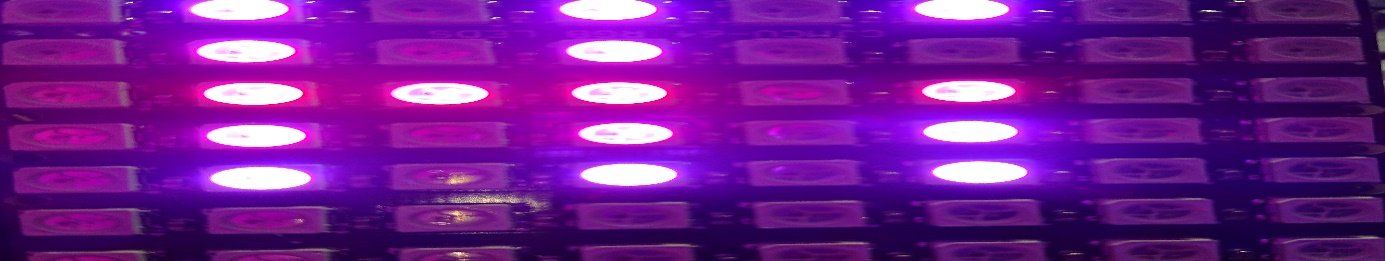

Captive Portal Blog Part 4 : BMP File Display on 8x8 Matrix Display

Hello and welcome to another part of the ESP Captive Portal series.

 In today's part, we are expanding our captive portal with an integrated file server by another very interesting follow-up application: We connect an 8x8 WS1812 matrix to the ESP32 and display 8x8 pixel BMP files stored on the file server! Currently there is a limitation that the BMP file must be exactly 8x8 pixels in order to be displayed. All other formats or sizes are not offered for display selection. The selection of which BMP file is to be displayed is made on the main website:

First of allbut  we have to add an 8x8 dot matrix display to the hardware and wire it up. The structure is very simple thanks to the single-wire bus of the WS2812 LEDs:

*** Please also note the safety instructions from our e-book for commissioning the 8x8 matrix ***

We upload the extended code to the ESP 32:



#include <WiFi.H>
#include <WiFiClient.H>
#include <Web server.H>
#include <ESPmDNS.H>
#include <SPIFFS.H>
#include <DNS server.H>
#include <EEPROM.H>
#include <FastLED.H>

#define GPIO_OUT_W1TS_REG (DR_REG_GPIO_BASE + 0x0008)
#define GPIO_OUT_W1TC_REG (DR_REG_GPIO_BASE + 0x000c)

#define LED_PIN  17
#define COLOR_ORDER GRB
#define CHIPSET     WS2812

static const byte WiFiPwdLen = 25;
static const byte APSTANAMELEN = 20;

struct WiFiEEPromData   {     bool APSTA = true; // Access point or station mode - true AP mode     bool PwDReq = false; // PasswordRequired     bool CapPortal = true ; // CaptivePortal on in AP Mode     char APSTAName[APSTANAMELEN]; // STATION / AP Point Name TO cONNECT, if definded     char WiFiPwd[WiFiPwdLen]; // WiFiPAssword, if definded     char ConfigValid[3]; // If Config is Vaild, Tag "TK" is required "   };

struct BMPHeader // BitMapStucture   {     uint32_t fileSize;  //       uint32_t creatorBytes; //       uint32_t imageOffset; // Start of image data "Image Offset:      uint32_t headerSize;     //       uint32_t width;     uint32_t height;     uint16_t planes;     uint16_t depth; // bits per pixel     uint32_t format;     };

/ * hostname for mDNS. Should work at least on windows. Try http://esp8266.local */
const char *ESPHostname = "ESP32";

// DNS server
const byte DNS_PORT = 53;
DNS server dnsServer;

// Conmmon Paramenters
bool SoftAccOK  = false;

// web server
Web server server(80);

/ * Soft AP network parameters * /
IPAddress apIP(172, 20, 0, 1);
IPAddress netMsk(255, 255, 255, 0);

unsigned long currentMillis = 0;
unsigned long startMillis;

/ ** Current WLAN status * /
short status = WL_IDLE_STATUS;

File fsUploadFile;              // a File object to temporarily store the received file
WiFiEEPromData MyWiFiConfig;
String getContentType(String filename); // convert the file extension to the MIME type
bool handleFileRead(String path);       // send the right file to the client (if it exists)
void handleFileUpload();                // upload a new file to the SPIFFS
String temp ="";                 byte BRIGHTNESS = 100;              // PresetBrightness
// Params for LEDs
const uint8_t kMatrixWidth = 8;
const uint8_t kMatrixHeight = 8;
// const bool kMatrixSerpentineLayout = false;

#define NUM_LEDS (kMatrixWidth * kMatrixHeight)
CRGB leds_plus_safety_pixel[ NUM_LEDS + 1];
CRGB* const leds( leds_plus_safety_pixel + 1);

void set up()
{   REG_WRITE(GPIO_OUT_W1TS_REG, BIT(GPIO_NUM_16));     // Guru Meditation Error Remediation set   delay(1);   REG_WRITE(GPIO_OUT_W1TC_REG, BIT(GPIO_NUM_16));     // Guru Meditation Error Remediation clear   bool ConnectSuccess = false;   bool CreateSoftAPSucc  = false;   bool CInitFS system  = false;   bool CInitHTTPServer  = false;   byte len;    Serial.begin(9600);    while (!Serial) {     ; // wait for serial port to connect. Needed for native USB   }   Serial.println(F("Serial Interface initalized at 9600 Baud."));    FastLED.addLeds<CHIPSET, LED_PIN, COLOR_ORDER>(leds, NUM_LEDS).setCorrection(TypicalSMD5050);   FastLED.setBrightness(BRIGHTNESS);   FastLED.show();   WiFi.setAutoReconnect (false);   WiFi.persistent(false);   WiFi.disconnect();    WiFi.setHostname(ESPHostname); // Set the DHCP hostname assigned to ESP station.   if (loadCredentials()) // Load WLAN credentials for WiFi Settings   {       Serial.println(F("Valid Credentials found."));         if (MyWiFiConfig.APSTA == true)  // AP Mode       {          Serial.println(F("Access Point Mode selected."));          len = strlen(MyWiFiConfig.APSTAName);         MyWiFiConfig.APSTAName[len+1] = '\0';          len = strlen(MyWiFiConfig.WiFiPwd);         MyWiFiConfig.WiFiPwd[len+1] = '\0';           CreateSoftAPSucc = CreateWifiSoftAP();       } else       {         Serial.println(F("Station Mode selected."));                len = strlen(MyWiFiConfig.APSTAName);         MyWiFiConfig.APSTAName[len+1] = '\0';          len = strlen(MyWiFiConfig.WiFiPwd);         MyWiFiConfig.WiFiPwd[len+1] = '\0';         len = ConnectWifiAP();              if ( len == 3 ) { ConnectSuccess = true; } else { ConnectSuccess = false; }            }   } else   { //Set default Config - Create AP      Serial.println(F("NO Valid Credentials found."));       SetDefaultWiFiConfig ();      CreateSoftAPSucc = CreateWifiSoftAP();       saveCredentials();      // Blink      delay(500);      }       // Initalize Filesystem   CInitFSSystem = InitalizeFileSystem();    if (!(CInitFSSystem)) {Serial.println(F("File System not initalized ! ")); }    if ((ConnectSuccess or CreateSoftAPSucc))     {                Serial.print (F("IP Address: "));       if (CreateSoftAPSucc) { Serial.println(WiFi.softAPIP());}          if (ConnectSuccess) { Serial.println(WiFi.localIP());}       InitalizeHTTPServer();          }     else     {       Serial.setDebugOutput(true); //Debug Output for WLAN on Serial Interface.       Serial.println(F("Error: Cannot connect to WLAN. Set DEFAULT Configuration."));       SetDefaultWiFiConfig();       CreateSoftAPSucc = CreateWifiSoftAP();       InitalizeHTTPServer();         SetDefaultWiFiConfig();       saveCredentials();        }    for ( int i = 0; i < NUM_LEDS; i++) // Clear LED Display     {           leds[i]=  0x000000;             }   FastLED.show();   // Clear Display :)
}

void InitalizeHTTPServer()
 {   bool initok = false;   /* Setup web pages: root, wifi config pages, SO captive portal detectors and not found. */   server.on("/", handleRoot);   server.on("/wifi", handleWifi);   server.on("/filesystem", HTTP_GET,handleDisplayFS);   server.on("/upload", HTTP_POST, []() {   server.send(200, "text/plain", "");   }, handleFileUpload);    // if (MyWiFiConfig.CapPortal) { server.on("/generate_204", handleRoot); } //Android captive portal. Maybe not needed. Might be handled by notFound handler.   // if (MyWiFiConfig.CapPortal) { server.on("/favicon.ico", handleRoot); }   //Another Android captive portal. Maybe not needed. Might be handled by notFound handler. Checked on Sony Handy   // if (MyWiFiConfig.CapPortal) { server.on("/fwlink", handleRoot); }  //Microsoft captive portal. Maybe not needed. Might be handled by notFound handler.   server.on("/generate_204", handleRoot);  //Android captive portal. Maybe not needed. Might be handled by notFound handler.   server.on("/favicon.ico", handleRoot);    //Another Android captive portal. Maybe not needed. Might be handled by notFound handler. Checked on Sony Handy   server.on("/fwlink", handleRoot);   //Microsoft captive portal. Maybe not needed. Might be handled by notFound handler.    server.onNotFound ( handleNotFound );   server.begin(); // Web server start
 }

boolean InitalizeFileSystem() {   bool initok = false;   initok = SPIFFS.begin();   delay(200);   if (!(initok))   {     Serial.println(F("Format SPIFFS"));     SPIFFS.format();     initok = SPIFFS.begin();   }   return initok;
}

boolean CreateWifiSoftAP()
{   WiFi.disconnect();   Serial.print(F("Initalize SoftAP "));   if (MyWiFiConfig.PwDReq)      {       SoftAccOK  =  WiFi.softAP(MyWiFiConfig.APSTAName, MyWiFiConfig.WiFiPwd); // Passwortlänge mindestens 8 Zeichen !     } else     {       SoftAccOK  =  WiFi.softAP(MyWiFiConfig.APSTAName); // Access Point WITHOUT Password       // Overload Function:; WiFi.softAP(ssid, password, channel, hidden)     }   delay(2000); // Without delay I've seen the IP address blank   WiFi.softAPConfig(apIP, apIP, netMsk);   if (SoftAccOK)   {    /* Setup the DNS server redirecting all the domains to the apIP */     dnsServer.setErrorReplyCode(DNSReplyCode::NoError);   dnsServer.start(DNS_PORT, "*", apIP);   Serial.println(F("successful."));   } else   {   Serial.println(F("Soft AP Error."));   Serial.println(MyWiFiConfig.APSTAName);   Serial.println(MyWiFiConfig.WiFiPwd);   }   return SoftAccOK;
}

byte ConnectWifiAP()
{   Serial.println(F("Initalizing Wifi Client."));     byte connRes = 0;   byte i = 0;   WiFi.disconnect();   WiFi.softAPdisconnect(true); // Function will set currently configured SSID and password of the soft-AP to null values. The parameter  is optional. If set to true it will switch the soft-AP mode off.   delay(500);   WiFi.begin(MyWiFiConfig.APSTAName, MyWiFiConfig.WiFiPwd);   connRes  = WiFi.waitForConnectResult();   while (( connRes == 0 ) and (i != 10))  //if connRes == 0  "IDLE_STATUS - change Statius"     {        connRes  = WiFi.waitForConnectResult();       delay(2000);       i++;       Serial.print(F("."));       // statement(s)     }   while (( connRes == 1 ) and (i != 10))  //if connRes == 1  NO_SSID_AVAILin - SSID cannot be reached     {        connRes  = WiFi.waitForConnectResult();       delay(2000);       i++;       Serial.print(F("."));       // statement(s)     }     if (connRes == 3 ) {                          WiFi.setAutoReconnect(true); // Set whether module will attempt to reconnect to an access point in case it is disconnected.                         // Setup MDNS responder                             if (!MDNS.begin(ESPHostname)) {                                 Serial.println(F("Error: MDNS"));                                 } else { MDNS.addService("http", "tcp", 80); }                      }   while (( connRes == 4 ) and (i != 10))  //if connRes == 4  Bad Password. Sometimes happens this with corrct PWD     {        WiFi.begin(MyWiFiConfig.APSTAName, MyWiFiConfig.WiFiPwd);        connRes = WiFi.waitForConnectResult();       delay(2000);       i++;       Serial.print(F("."));                      }   if (connRes == 4 ) {                           Serial.println(F("STA Pwd Err"));                                              Serial.println(MyWiFiConfig.APSTAName);                         Serial.println(MyWiFiConfig.WiFiPwd);                          WiFi.disconnect();                       }
Serial.println(F(""));
return connRes;
}

uint16_t read16(File f)
{   // BMP data is stored little-endian, same as Arduino.   uint16_t result;   ((uint8_t *)&result)[0] = f.read(); // LSB   ((uint8_t *)&result)[1] = f.read(); // MSB   return result;
}

uint32_t read32(File f)
{   // BMP data is stored little-endian, same as Arduino.   uint32_t result;   ((uint8_t *)&result)[0] = f.read(); // LSB   ((uint8_t *)&result)[1] = f.read();   ((uint8_t *)&result)[2] = f.read();   ((uint8_t *)&result)[3] = f.read(); // MSB   return result;
}

BMPHeader ReadBitmapSpecs(String filename)
{   File file;   BMPHeader BMPData;   file =SPIFFS.open(filename, "r");   if (!file)   {     file.close();     return BMPData;   }   // Parse BMP header   if (read16(file) == 0x4D42) // BMP signature   {     BMPData.fileSize = read32(file);     BMPData.creatorBytes = read32(file);     BMPData.imageOffset = read32(file); // Start of image data     BMPData.headerSize = read32(file);     BMPData.width  = read32(file);     BMPData.height = read32(file);     BMPData.planes = read16(file);     BMPData.depth = read16(file); // bits per pixel     BMPData.format = read32(file);   }
file.close();
return BMPData;
}

#define SD_BUFFER_PIXELS 20

void drawBitmap_SPIFFS(String filename, uint8_t x, uint8_t y)
{   File file;   uint8_t buffer[3 * SD_BUFFER_PIXELS]; // pixel buffer, size for r,g,b   bool valid = false; // valid format to be handled   bool flip = true; // bitmap is stored bottom-to-top   uint32_t pos = 0;   file =SPIFFS.open(filename, "r");   if (!file)   {     Serial.print(F("Filesytem Error"));     return;   }   // Parse BMP header   if (read16(file) == 0x4D42) // BMP signature   {     uint32_t fileSize = read32(file);     uint32_t creatorBytes = read32(file);     uint32_t imageOffset = read32(file); // Start of image data     uint32_t headerSize = read32(file);     uint32_t width  = read32(file);     uint32_t height = read32(file);     uint16_t planes = read16(file);     uint16_t depth = read16(file); // bits per pixel     uint32_t format = read32(file);     if ((planes == 1) && (format == 0)) // uncompressed is handled     {       Serial.print(F("File size: "));        Serial.println(fileSize);       Serial.print(F("Image Offset: "));        Serial.println(imageOffset);       Serial.print(F("Header size: "));        Serial.println(headerSize);       Serial.print(F("Bit Depth: "));        Serial.println(depth);       Serial.print(F("Image size: "));       Serial.print(width);       Serial.print('x');       Serial.println(height);       uint32_t rowSize = (width * depth / 8 + 3) & ~3;       if (height < 0)       {         height = -height;         flip = false;       }       uint16_t w = width;       uint16_t h = height;       size_t buffidx = sizeof(buffer); // force buffer load       for (uint16_t row = 0; row < h; row++) // for each line       {         if (flip) // Bitmap is stored bottom-to-top order (normal BMP)           pos = imageOffset + (height - 1 - row) * rowSize;         else     // Bitmap is stored top-to-bottom           pos = imageOffset + row * rowSize;         if (file.position() != pos)         { // Need seek?           file.seek(pos,SeekSet);  // if mode is SeekSet, position is set to offset bytes from the beginning.                                     // if mode is SeekCur, current position is moved by offset bytes.                                     // if mode is SeekEnd, position is set to offset bytes from the end of the            buffidx = sizeof(buffer); // force buffer reload         }         uint8_t bits;         for (uint16_t col = 0; col < w; col++) // for each pixel         {           // Time to read more pixel data?           if (buffidx >= sizeof(buffer))           {             file.read(buffer, sizeof(buffer));             buffidx = 0; // Set index to beginning           }           switch (depth)           {             case 1: // one bit per pixel b/w format               {                 valid = true;                 if (0 == col % 8)                 {                   bits = buffer[buffidx++];                 }                 uint16_t bw_color = bits & 0x80;                               uint16_t PixelNum = (row*8)+col;                 leds[PixelNum].red  = bw_color;                 leds[PixelNum].green = bw_color;                 leds[PixelNum].blue  = bw_color;                 bits <<= 1;               }               break;             case 24: // standard BMP format               {                 valid = true;                 uint16_t b = buffer[buffidx++];                 uint16_t g = buffer[buffidx++];                 uint16_t r = buffer[buffidx++];                 uint16_t PixelNum = (row*8)+col;                 leds[PixelNum].red  = r;                 leds[PixelNum].green  = g;                 leds[PixelNum].blue  = b;               }               break;           }         } // end pixel       } // end line      FastLED.show();   // Show results :)     }   }     file.close();   if (!(valid))   {     Serial.println(F("Err: BMP"));   }
}

void handleFileUpload() {    if (server.uri() != "/upload") return;    HTTPUpload& upload = server.upload();    if (upload.status == UPLOAD_FILE_START) {      String filename = upload.filename;      if (upload.filename.length() > 30) {       upload.filename = upload.filename.substring(upload.filename.length() - 30, upload.filename.length());  // Dateinamen auf 30 Zeichen kürzen     }      Serial.println("FileUpload Name: " + upload.filename);        if (!filename.startsWith("/")) filename = "/" + filename;       fsUploadFile = SPIFFS.open("/" + server.urlDecode(upload.filename), "w");      filename = String();    } else if (upload.status == UPLOAD_FILE_WRITE) {      if (fsUploadFile)        fsUploadFile.write(upload.buf, upload.currentSize);    } else if (upload.status == UPLOAD_FILE_END) {      if (fsUploadFile)        fsUploadFile.close();      handleDisplayFS();    }
 }

void handleDisplayFS() {                     // HTML Filesystem   //Page: / filesystem   temp ="";   // HTML Header     server.sendHeader("Cache-Control", "no-cache, no-store, must-revalidate");   server.sendHeader("Pragma", "no-cache");   server.sendHeader("Expiring", "-1");   server.setContentLength(CONTENT_LENGTH_UNKNOWN);   // HTML Content   server.send ( 200, "text / html", temp );    temp += "<!DOCTYPE HTML><html lang='EN'><head><meta charset='UTF-8'><meta name= viewport content='width=device-width, initial-scale=1.0,'>";   server.sendContent(temp);   temp = "";   temp += "<style type= 'text / css' > & lt;!-- DIV.container { min-height: 10em; display: table-cell; vertical-align: middle }.button {height: 35px; width: 90px; font-size: 16px}";   server.sendContent(temp);   temp = "";   temp += "body {background-color: powderblue;} & lt;/style & gt;< head & gt;<title>File System Manager & lt;/title & gt; & lt; / head>";   temp += "<h2>Serial Peripheral Interface Flash Filesystem</h2><body><left>";   server.sendContent(temp);   temp = "";   if (server.args() > 0) // Parameters were passed     {       if (server.hasArg("delete"))           {               String FToDel = server.arg("delete");           if (SPIFFS.exists(FToDel))               {               SPIFFS.remove(FToDel);                 temp += "File " + FToDel + "successfully deleted.";             } else             {               temp += "File " + FToDel + "cannot be deleted.";             }           server.sendContent(temp);           temp = "";         }       if (server.hasArg("format") and server.arg("on"))           {              SPIFFS.format();            temp += "SPI File system successfully formatted.";            server.sendContent(temp);            temp = "";         } //   server.client().stop (); / / Stop is needed because we sent no content length        }     temp += "<table border=2 bgcolor = white width = 400 ><td><h4>Current SPIFFS Status: </h4>";     temp += formatBytes(SPIFFS.usedBytes() * 1.05) + "of " + formatBytes(SPIFFS.total bytes()) + "used. & lt; br & gt;";   temp += formatBytes((SPIFFS.total bytes() - (SPIFFS.usedBytes() * 1.05)))+ "free. & lt; br & gt;";   temp += "</td></table><br>";   server.sendContent(temp);   temp = "";   // Check for site Parameters    temp += "<table border=2 bgcolor = white width = 400><tr><th><br>";   temp += "<h4>Available Files on SPIFFS:</h4><table border=2 bgcolor = white ></tr></th><td>Filename</td><td>Size</td><td>Action </td></tr></th>";   server.sendContent(temp);   temp = "";   File root = SPIFFS.open("/");   File file = root.open next file();    while (file)   {      temp += "<td > & lt;a title = \ "Download\" href =\"" + String(file.name()) + "\" download=\"" + String(file.name()) + "\">" + String(file.name()) + "</a> <br></th>";      temp += "< td & gt;"+ formatBytes(file.size())+ "</td & gt;";      temp += "<td> & lt;a href =filesystem?delete=" + String(file.name()) + "> Delete </a></td>";      temp += "</tr></th>";         file = root.open next file();    }   temp += "</tr></th>";   temp += "</td></tr></th><br></th></tr></table></table><br>";   temp += "<table border=2 bgcolor = white width = 400 ><td><h4>Upload</h4>";   temp += "<label & gt; Choose File: & lt;/label & gt;";   temp += "<form method='POST' action='/upload' enctype='multipart/form-data' style='height:35px;'><input type='file' name='upload' style='height:35px; font-size:13px;' required>\r\n<input type='submit' value='Upload' class='button'></form>";   temp += "</table><br>";   server.sendContent(temp);   temp = "";   temp += "<td> & lt;a href =filesystem?format = on & gt; format SPIFFS Filesystem. (Takes up to 30 Seconds) </a></td & gt;";   temp += "<table border=2 bgcolor = white width = 500 cellpadding =5 ><caption><p><h3>system links:</h2></p></caption><tr><th><br>";   temp += "<a href='/'>Main Page</a><br><br></th></tr></table><br><br>";   server.sendContent(temp);   temp = "";   temp += "<footer><p>Programmed and designed by: Tobias Kuch</p><p>Contact information: <a href='mailto:tobias.kuch@googlemail.com'>tobias.kuch@googlemail.com</a>.</p></footer></body></html>";     //server.send ( 200, "", temp );   server.sendContent(temp);   server.client().stop(); // Stop is needed because we sent no content length   temp = "";
 }

/ * * Load WLAN credentials from EEPROM */

bool loadCredentials()
{
 bool RetValue;
 EEPROM.begin(512);
 EEPROM.get(0, MyWiFiConfig);
 EEPROM.end();
 if (String(MyWiFiConfig.Config valid) == String("PBX"))    {     RetValue = true;   } else   {     RetValue = false; // WLAN Settings not found.   }   return RetValue;
}

/ * * Store WLAN credentials to EEPROM */
bool saveCredentials()
{
bool RetValue;
// Check logical Errors
RetValue = true;
if  (MyWiFiConfig.APSTA == true ) // AP Mode   {    if (MyWiFiConfig.PwDReq and (sizeof(String(MyWiFiConfig.WiFiPwd)) < 8))     {           RetValue = false;  // Invalid Config     }    if (sizeof(String(MyWiFiConfig.APSTAName)) < 1)     {       RetValue = false;  // Invalid Config     }   }
if (RetValue)   {   EEPROM.begin(512);   for (int i = 0 ; i < sizeof(MyWiFiConfig) ; i++)       {       EEPROM.write(i, 0);      }   strncpy( MyWiFiConfig.Config valid , "PBX", sizeof(MyWiFiConfig.Config valid) );   EEPROM.put(0, MyWiFiConfig);   EEPROM.commit();   EEPROM.end();   }   return RetValue;
}


void Setdefault WiFi config()
{    byte len;    MyWiFiConfig.APSTA = true;    MyWiFiConfig.PwDReq = true;  // default PW required    MyWiFiConfig.CapPortal = true;    strncpy( MyWiFiConfig.APSTAName, "ESP_Config", sizeof(MyWiFiConfig.APSTAName) );    len = strlen(MyWiFiConfig.APSTAName);    MyWiFiConfig.APSTAName[len+1] = '\0';       strncpy( MyWiFiConfig.WiFiPwd, "12345678", sizeof(MyWiFiConfig.WiFiPwd) );    len = strlen(MyWiFiConfig.WiFiPwd);    MyWiFiConfig.WiFiPwd[len+1] = '\0';      strncpy( MyWiFiConfig.Config valid, "PBX", sizeof(MyWiFiConfig.Config valid) );    len = strlen(MyWiFiConfig.Config valid);    MyWiFiConfig.Config valid[len+1] = '\0';     Serial.println(F("Reset WiFi Credentials."));
}

void handle root() {
// Main Page:
 temp = "";
 short PicCount = 0;
 byte ServArgs = 0;

// Building Page   // HTML Header   server.sendHeader("Cache-Control", "no-cache, no-store, must-revalidate");   server.sendHeader("Pragma", "no-cache");   server.sendHeader("Expiring", "-1");   server.setContentLength(CONTENT_LENGTH_UNKNOWN);
// HTML Content   server.send ( 200, "text / html", temp );   // Save memory-send to the Client   temp = "";   temp += "<!DOCTYPE HTML><html lang='EN'><head><meta charset='UTF-8'><meta name= viewport content='width=device-width, initial-scale=1.0,'>";   temp += "<style type= 'text / css' > & lt;!-- DIV.container { min-height: 10em; display: table-cell; vertical-align: middle }.button {height: 35px; width: 90px; font-size: 16px}";   server.sendContent(temp);   temp = "";   temp += "body {background-color: powderblue;} & lt;/style & gt;";   temp += "<head><title>Tobi's LED Display</title></head>";   temp += "<h2>LED Display & lt;/h2 & gt;";   temp += "< body & gt;";   server.sendContent(temp);   temp = "";
// Processing User Request
if (server.args() > 0) // Parameters were passed   {    temp += "<br & gt;entries are processed. Please wait..<br><br>";;   server.sendContent(temp);   temp = "";
// Update Background Paper
if (server.arg("PicSelect") == "off")  // Clear LED Display   {       temp = "";     for ( int i = 0; i < NUM_LEDS; i++)       {             LEDs[i]=  0x000000;               }     FastLED.show();    } else   {     temp = server.arg("PicSelect"); // Image selected. Display content produced by Picselect     drawBitmap_SPIFFS(temp,0,0);     temp = "";      }
}   temp += "<table border=2 bgcolor = white ><caption><p><h3>Available-Pictures in SPIIFS for 8x8 Display</h2></p></caption>";   temp += "< form & gt;";   temp += "<tr><th><input type='radio' name='PicSelect' value = 'off' checked> Clear LED Display<br></th></tr>";   temp += "<tr><th>";   // List available BMP Files in SPIFFS   File root = SPIFFS.open("/");   File file = root.open next file();    PicCount = 1;   while (file)    {     if (String(file.name()).endsWith(".bmp") or String(file.name()).endsWith(".BMP"))     {       BMPHeader PicData = Read bitmap specs(file.name());       if ((PicData.width < kMatrixWidth + 1) and (PicData.height < kMatrixHeight +1 ))  // Display only in list, when Bitmap not exceeding Display Resolution. Bigger Images are not listed.         {           temp += "<label for='radio1'><img src='"+ String(file.name())+"' old='"+ String(file.name())+"'border=' 3 ' bordercolor=green> Image "+ PicCount+"</label> & lt;input type = 'radio' value='"+ String(file.name())+"'name='PicSelect'/> & lt;br & gt;";           temp += String(file.name())+ " Re: "+ String(PicData.width) + "x" + String(PicData.height) + "px Filesize: "+ formatBytes(file.size()) + "</th></tr><tr><th>";           PicCount ++;         }     }    file = root.open next file();         }    server.sendContent(temp);   temp = "";     temp = "<button type= 'submit' name= 'action' value= ' 0 'style=' height: 50px; width: 280px ' & gt;Show Image on Led Display & LT;/button & gt;";   temp += "</form & gt;";   temp += "<br><table border=2 bgcolor = white width = 280 cellpadding =5 ><caption><p><h3>system, links:</h2></p></caption>";   temp += "<tr><th><br>";   temp += "<a href='/wifi'>WIFI Settings</a><br><br>";   temp += "<a href='/filesystem'>Filemanager</a><br>< br & gt;";   temp += "</th></tr></table><br><br>";   temp += "<footer><p>Programmed and designed by: Tobias Kuch</p><p>Contact information: <a href='mailto:tobias.kuch@googlemail.com'>tobias.kuch@googlemail.com</a>.</p></footer>";   temp += "</body></html>";   server.sendContent(temp);   temp = "";   server.client().stop(); // Stop is needed because we sent no content length
}

void handle NOTFOUND() {      if (captivePortal())        { // If caprive portal redirect instead of displaying the error page.         return;       }   if (!handle file read(server.uri()))      {     temp = "";      // HTML Header     server.sendHeader("Cache-Control", "no-cache, no-store, must-revalidate");     server.sendHeader("Pragma", "no-cache");     server.sendHeader("Expiring", "-1");     server.setContentLength(CONTENT_LENGTH_UNKNOWN);     // HTML Content     temp += "<!DOCTYPE HTML><html lang='EN'><head><meta charset='UTF-8'><meta name= viewport content='width=device-width, initial-scale=1.0,'>";     temp += "<style type= 'text / css' > & lt;!-- DIV.container { min-height: 10em; display: table-cell; vertical-align: middle }.button {height: 35px; width: 90px; font-size: 16px}";     temp += "body {background-color: powderblue;} & lt;/style & gt;";     temp += "<head><title>File not found</title></head>";     temp += "<h2> 404 File Not Found</h2><br>";     temp += "<h4>Debug Information</h4><br>";     temp += "< body & gt;";     temp += "URI: ";     temp += server.uri();     temp += "\nMethod: ";     temp+= ( server.method() == HTTP_GET ) ? "GET" : "POST";     temp += "<br>Arguments: ";     temp += server.args();     temp += "\next";       for ( uint8_t i = 0; i < server.args(); i++ ) {         temp += " " + server.argName ( i ) + ": " + server.arg ( i ) + "\next";         }     temp += "<br & gt;Server Hostheader: "+ server.hostHeader();     for ( uint8_t i = 0; i < server.header(); i++ ) {         temp += " " + server.headerName ( i ) + ": " + server.header ( i ) + "\n<br & gt;";         }       temp += "</table></form><br><br><table border=2 bgcolor = white width = 500 cellpadding =5 ><caption><p><h2>You may want to browse to:</h2></p></caption>";     temp += "<tr><th>";     temp += "<a href='/'>Main Page</a><br>";     temp += "<a href='/wifi'>WIFI Settings</a><br & gt;";     temp += "<a href='/filesystem'>Filemanager</a><br & gt;";     temp += "</th></tr></table><br><br>";     temp += "<footer><p>Programmed and designed by: Tobias Kuch</p><p>Contact information: <a href='mailto:tobias.kuch@googlemail.com'>tobias.kuch@googlemail.com</a>.</p></footer>";     temp += "</body></html>";     server.send ( 404, "", temp );     server.client().stop(); // Stop is needed because we sent no content length     temp = "";     }
}

/ * * Redirect to captive portal if we got a request for another domain. Return true in that case so the page handler do not try to handle the request again. */
boolean captivePortal() {   if (!isIp(server.hostHeader()) && server.hostHeader() != (String(ESPHostname)+".local")) {     // Serial.println ("Request redirected to captive portal");       server.sendHeader("Venue", String("http://") + toStringIp(server.client().localIP()), true);     server.send ( 302, "text / plain", ""); // Empty content inhibits Content-length header so we have to close the socket ourselves.     server.client().stop(); // Stop is needed because we sent no content length     return true;   }   return false;
}

/** Wifi config page handler */
void handle WiFi()
 {   // Page /wifi   byte i;   byte len ;   temp = "";   // Check for site Parameters         if (server.hasArg("Reboot") )  // Reboot System         {          temp = "Rebooting System in 5 Seconds..";          server.send ( 200, "text / html", temp );          delay(5000);          server.client().stop();                WiFi.disconnect();          delay(1000);              }       if (server.hasArg("WiFiMode") and (server.arg("WiFiMode") == "1")  )  // STA Station mode Connect to another WIFI Station          {         startMillis = millis(); // Reset time up Counter to avoid Idle mode whiole operating         // Connect to existing STATION         if ( sizeof(server.arg("WiFi_Network")) > 0  )           {             Serial.println("STA Mode");             MyWiFiConfig.APSTA = false; // Access Point or Station Mode-false Station Mode             temp = "";                       for ( i = 0; i < APSTANameLen;i++) { MyWiFiConfig.APSTAName[i] =  0; }             temp = server.arg("WiFi_Network");             len =  temp.length();             for ( i = 0; i < len;i++)              {                    MyWiFiConfig.APSTAName[i] =  temp[i];                           }          // MyWiFiConfig.APSTAName[len + 1] = '\0';               temp = "";             for ( i = 0; i < WiFiPwdLen;i++)  { MyWiFiConfig.WiFiPwd[i] =  0; }                       temp = server.arg("STAWLanPW");             len =  temp.length();                                  for ( i = 0; i < len;i++)                 {                  if (temp[i] > 32) //Control characters out                   {                    MyWiFiConfig.WiFiPwd[i] =  temp[i];                     }                 }         // MyWiFiConfig.WiFiPwd[len+1] = '\0';               temp = "WiFi Connect to AP: -";              temp += MyWiFiConfig.APSTAName;             temp += "- <br & gt;WiFi PW: -";              temp += MyWiFiConfig.WiFiPwd;             temp += "-< br & gt;";                       temp += "Connecting to STA Mode in 2 Seconds..& lt; br & gt;";             server.send ( 200, "text / html", temp );              server.sendContent(temp);             delay(2000);             server.client().stop();              server.stop();             temp = "";             WiFi.disconnect();             WiFi.softAPdisconnect(true);             delay(500);            // ConnectWifiAP            bool SaveOk = saveCredentials();                       i = ConnectWifiAP();             delay(700);             if (i != 3) // 4: WL_CONNECT_FAILED-Password is incorrect 1: WL_NO_SSID_AVAILin - Configured SSID cannot be reached               {                  Serial.print(F("Cannot Connect to specified Network. Reason: "));                  Serial.println(i);                  server.client().stop();                  delay(100);                               WiFi.setautor connect (false);                  delay(100);                       WiFi.disconnect();                               delay(1000);                  Setdefault WiFi config();                  CreateWifiSoftAP();                  return;                } else               {                  // Safe Config                  bool SaveOk = saveCredentials();                  Initalize HTTPServer();                  return;               }           }        }                 if (server.hasArg("WiFiMode") and (server.arg("WiFiMode") == "2")  )  // Change AP Mode         {         startMillis = millis(); // Reset time up Counter to avoid Idle mode whiole operating         // Configure Access Point         temp = server.arg("Checkout name");               len =  temp.length();         temp =server.arg("APPW");         if (server.hasArg("PasswordReq"))             {                     i =  temp.length();             } else { i = 8; }                  if (  ( len > 1 ) and (server.arg("APPW") == server.arg("APPWRepeat")) and ( i > 7)          )           {             temp = "";             Serial.println(F("APMode"));             MyWiFiConfig.APSTA = true; // Access Point or Sation Mode-true AP Mode                                   if (server.hasArg("CaptivePortal"))             {               MyWiFiConfig.CapPortal = true ; // CaptivePortal on in AP Mode             } else { MyWiFiConfig.CapPortal = false ; }                        if (server.hasArg("PasswordReq"))             {               MyWiFiConfig.PwDReq = true ; // Password Required in AP Mode             } else { MyWiFiConfig.PwDReq = false ; }             for ( i = 0; i < APSTANameLen;i++) { MyWiFiConfig.APSTAName[i] =  0; }             temp = server.arg("Checkout name");             len =  temp.length();             for ( i = 0; i < len;i++) { MyWiFiConfig.APSTAName[i] =  temp[i]; }             MyWiFiConfig.APSTAName[len+1] = '\0';               temp = "";             for ( i = 0; i < WiFiPwdLen;i++)  {  MyWiFiConfig.WiFiPwd[i] =  0; }                       temp = server.arg("APPW");             len =  temp.length();                                  for ( i = 0; i < len;i++)  { MyWiFiConfig.WiFiPwd[i] =  temp[i];  }             MyWiFiConfig.WiFiPwd[len+1] = '\0';               temp = "";                      if (saveCredentials()) // Save AP ConfigCongfig                 {                         temp = "Data of the AP mode saved successfully. Reboot necessary.";               } else  { temp = "Data of the AP mode faulty.";  }           } else if (server.arg("APPW") != server.arg("APPWRepeat"))                 {                   temp = "";                   temp = "WLAN password not equal. Aborted.";                 } else                 {                               temp = "";                   temp = "WLAN password or AP Name too short. Aborted.";                 }                      // End WifiAP               }   // HTML Header   server.sendHeader("Cache-Control", "no-cache, no-store, must-revalidate");   server.sendHeader("Pragma", "no-cache");   server.sendHeader("Expiring", "-1");   server.setContentLength(CONTENT_LENGTH_UNKNOWN);
// HTML Content   temp += "<!DOCTYPE HTML><html lang='EN'><head><meta charset='UTF-8'><meta name= viewport content='width=device-width, initial-scale=1.0,'>";   server.send ( 200, "text / html", temp );    temp = "";    temp += "<style type= 'text / css' > & lt;!-- DIV.container { min-height: 10em; display: table-cell; vertical-align: middle }.button {height: 35px; width: 90px; font-size: 16px}";   temp += "body {background-color: powderblue;} & lt;/style & gt;< head & gt;<title>smart door sign - WiFi Settings</title> & lt;/head & gt;";   server.sendContent(temp);   temp = "";   temp += "<h2>WiFi Settings</h2><body><left>";   temp += "<table border=2 bgcolor = white width = 500 ><td><h4>Current WiFi Settings: </h4>";   if (server.client().localIP() == apIP) {      temp += "Mode : Soft Access Point (AP)<br & gt;";      temp += "SSID broadcast : " + String (MyWiFiConfig.APSTAName) + "<br><br>";   } else {      temp += "Mode : Station (STA) <br & gt;";      temp += "SSID broadcast  :  "+ String (MyWiFiConfig.APSTAName) + "<br & gt;";      temp += "BSSID :  " + WiFi.BSSIDstr()+ "<br><br>";   }   temp += "</td></table><br>";   server.sendContent(temp);   temp = "";   temp += "<form action= '/ wifi 'method =' post ' & gt;";   temp += "<table border=2 bgcolor = white width = 500><tr><th><br>";   if (MyWiFiConfig.APSTA == 1)     {       temp += "< input type= 'radio' value= ' 1 'name= 'WiFiMode'> WiFi Station Mode & lt;br & gt;";     } else     {       temp += "<input type= 'radio' value= ' 1 'name= 'WiFiMode' checked> WiFi Station Mode & lt;br & gt;";     }   temp += The "Available WiFi Networks:<table border=2 bgcolor = white ></tr></th><td>Number </td><td>SSID </td><td>Encryption </td><td>WiFi Strength </td>";   server.sendContent(temp);   temp = "";   WiFi.scan delete();   int next = WiFi.scan networks(false, false); // WiFi.scan networks(async, show_hidden)   if (next > 0) {     for (int i = 0; i < next; i++) {     temp += "</tr></th>";     String National regulatory authority = String(i);     temp += "< td & gt;" + National regulatory authority + "</td & gt;";     temp += "< td & gt;" + WiFi.SSID broadcast(i) +"</td & gt;";         National regulatory authority = GetEncryptionType(WiFi.encryptionType(i));     temp += "< td & gt;"+ National regulatory authority + "</td & gt;";     temp += "< td & gt;" + String(WiFi.RSSI(i)) + "</td & gt;";        }   } else {     temp += "</tr></th>";     temp += "<td>1 </td>";     temp += "<td>No WLAN found</td & gt;";     temp += "<td> --- </td>";     temp += "<td> --- </td>";   }   temp += "</table><table border=2 bgcolor = white ></tr></th><td>Connect to WiFi SSID: </td><td><select name='WiFi_Network' >";
if (next > 0) {     for (int i = 0; i < next; i++) {     temp += "< option value='" + WiFi.SSID broadcast(i) +"'>" + WiFi.SSID broadcast(i) +"< / option & gt;";           }   } else {     temp += "<option value= 'No_wifi_network' & gt;No WiFiNetwork found !/ option & gt;";   }   server.sendContent(temp);   temp = "";   temp += "</select></td></tr></th></tr></th><td>WiFi Password </td><td>";   temp += "<input type='text' name='STAWLanPW' maxlength='40' size='40'>";    temp += "</td></tr></th><br></th></tr></table></table><table border=2 bgcolor = white width = 500 ><tr><th><br>";   server.sendContent(temp);   temp = "";   if (MyWiFiConfig.APSTA == true)     {       temp += "<input type= 'radio' name= 'WiFiMode' value= '2' checked & gt; WiFi Access point Mode <br & gt;";     } else     {       temp += "< input type= 'radio' name= 'WiFiMode' value= '2' & gt; WiFi Access point Mode <br & gt;";     }   temp += "<table border=2 bgcolor = white ></tr></th> <td>WiFi Access Point Name is: </td><td>";     server.sendContent(temp);   temp = "";               if (MyWiFiConfig.APSTA == true)     {       temp += "<input type='text' name='checkout name' maxlength='"+String(APSTANameLen-1)+"'size= '30'value='" + String(MyWiFiConfig.APSTAName) + "'></td & gt;";     } else     {       temp += "<input type='text' name='checkout name' maxlength='"+String(APSTANameLen-1)+"'size=' 30 ' & gt; & lt;/td & gt;";     }   server.sendContent(temp);   temp = "";          if (MyWiFiConfig.APSTA == true)     {       temp += "</tr></th><td>WiFi Password </td><td>";       temp += "<input type='password' name='APPW' maxlength='"+String(WiFiPwdLen-1)+"'size= '30'value='" + String(MyWiFiConfig.WiFiPwd) + "'> </td & gt;";       temp += "</tr></th><td>Repeat WiFi Password: </td & gt;";       temp += "<td><input type='password' name='APPWRepeat' maxlength='"+String(WiFiPwdLen-1)+"'size= '30'value='" + String(MyWiFiConfig.WiFiPwd) + "'> </td & gt;";     } else     {       temp += "</tr></th><td>WiFi Password </td><td>";       temp += "<input type='password' name='APPW' maxlength='"+String(WiFiPwdLen-1)+"'size=' 30 ' & gt; & lt;/td & gt;";       temp += "</tr></th><td>Repeat WiFi Password: </td & gt;";       temp += "<td><input type='password' name='APPWRepeat' maxlength='"+String(WiFiPwdLen-1)+"'size=' 30 ' & gt; & lt;/td & gt;";     }       temp += "</table & gt;";   server.sendContent(temp);   temp = "";         if (MyWiFiConfig.PwDReq)     {       temp += "<input type=' checkbox'name =' PasswordReq ' checked> Password for Login required. ";      } else     {       temp += "<input type=' checkbox'name =' PasswordReq ' > Password for Login required. ";      }   server.sendContent(temp);   temp = "";     if (MyWiFiConfig.CapPortal)     {       temp += "<input type='checkbox' name='CaptivePortal' checked & gt; Activate Captive Portal";      } else     {       temp += "<input type='checkbox' name='CaptivePortal' & gt; Activate Captive Portal";      }   server.sendContent(temp);   temp = "";     temp += "<br></tr></th></table><br> <button type='submit' name='Settings' value='1' style='height: 50px; width: 140px' autofocus>Set WiFi Settings</button>";   temp += "<button type='submit' name='Reboot' value='1' style='height: 50px; width: 200px' >Reboot System</button>";   server.sendContent(temp);   temp = "";   temp += "<button type='reset' name='action' value='1' style='height: 50px; width: 100px' >Reset</button></form>";   temp += "<table border=2 bgcolor = white width = 500 cellpadding =5 ><caption><p><h3>system links:</h2></p></caption><tr><th><br>";   server.sendContent(temp);   temp = "";   temp += "<a href='/'>Main Page</a><br><br></th></tr></table><br><br>";   temp += "<footer><p>Programmed and designed by: Tobias Kuch</p><p>Contact information: <a href='mailto:tobias.kuch@googlemail.com'>tobias.kuch@googlemail.com</a>.</p></footer>";   temp += "</body></html>";     server.sendContent(temp);   server.client().stop(); // Stop is needed because we sent no content length   temp = "";
}

void handle upload, save()
{   String FileData ;     temp = "";               for (byte i = 0; i < server.args(); i++)    {     temp += "Arg " + (String)i + " –> ";   // Include the current iteration value     temp += server.argName(i) + ": ";     // Get the name of the parameter     temp += server.arg(i) + "\next";              // Get the value of the parameter   }    // server.send (200, "text / plain", temp); //Response to the HTTP request   FileData = server.arg("file");    server.sendHeader("Venue", "filesystem", true);   server.sendHeader("Cache-Control", "no-cache, no-store, must-revalidate");   server.sendHeader("Pragma", "no-cache");   server.sendHeader("Expiring", "-1");   server.send ( 302, "text / plain", "");  // Empty content inhibits Content-length header so we have to close the socket ourselves.   server.client().stop(); // Stop is needed because we sent no content length
}

/ * * Is this an IP? */
boolean isIp(String beaches) {   for (int i = 0; i < beaches.length(); i++) {     int c = beaches.charAt(i);     if (c != '.' && (c < '0' || c > '9')) {       return false;     }   }   return true;
}

String GetEncryptionType(byte thisType) {   String Output = "";    // read the encryption type and print out the name:    switch (thisType) {      case 5:        Output = "WFP";        return Output;        break;      case 2:        Output = "EPA";        return Output;        break;      case 4:        Output = "WPA2";        return Output;        break;      case 7:        Output = "Programming chat";        return Output;        break;      case 8:        Output = "Car";        return Output;       break;    }
}

/ * * IP to String? */
String toStringIp(IPAddress IP) {   String re = "";   for (int i = 0; i < 3; i++) {     re += String((IP >> (8 * i)) & 0xFF) + ".";   }   re += String(((IP >> 8 * 3)) & 0xFF);   return re;
}

String formatBytes(size_t octets) {            // readable display of memory sizes    if (octets < 1024) {      return String(octets) + " Byte";    } else if (octets < (1024 * 1024)) {      return String(octets / 1024.0) + " KB";    } else if (octets < (1024 * 1024 * 1024)) {      return String(octets / 1024.0 / 1024.0) + " MB";    }
 }

String getContentType(String file name) { // convert the file extension to the MIME type   if (file name.endsWith(".htm")) return "text / html";   else if (file name.endsWith(".CSS")) return "text / css";   else if (file name.endsWith(".BTT")) return "application / javascript";   else if (file name.endsWith(".ico")) return "image / x-icon";   else if (file name.endsWith(".gz")) return "application / x-gzip";   else if (file name.endsWith(".bmp")) return "image / bmp";   else if (file name.endsWith(".tif")) return "image/tiff";   else if (file name.endsWith(".pbm")) return "image / X-portable-bitmap";   else if (file name.endsWith(".jpg")) return "image / jpeg";   else if (file name.endsWith(".gif")) return "image / gif";   else if (file name.endsWith(".png")) return "image / png";   else if (file name.endsWith(".svg")) return "image / svg + xml";   else if (file name.endsWith(".HTML")) return "text / html";   else if (file name.endsWith(".wav")) return "audio / x-wav";   else if (file name.endsWith(".zip")) return "application / zip";   else if (file name.endsWith(".rgb")) return "image / x-rg";
 // Complete List on https://wiki.selfhtml.org/wiki/MIME-Type/Overview   return "text / plain";
}

bool handle file read(String path) { // send the right file to the client (if it exists)   if (path.endsWith("/")) path += "index.HTML";          // If a folder is requested, send the index file   String contentType = getContentType(path);             // Get the MIME type   String pathWithGz = path + ".gz";   if (SPIFFS.exists(pathWithGz) || SPIFFS.exists(path)) { // If the file exists, either as a compressed archive, or normal     if (SPIFFS.exists(pathWithGz))                         // If there's a compressed version available       path += ".gz";                                         // Use the compressed verion     File file = SPIFFS.open(path, "s");                    // Open the file     size_t sent = server.streamFile(file, contentType);    // Send it to the client     file.close();                                          // Close the file again     return true;   }   return false;
}

void loop()
 {    if (SoftAccOK)   {     dnsServer.process next request(); //DNS   }   //HTTP   server.handleClient();
}



I have created some 8x8 BMP graphics in different color depth for you to test:

 Download BMP graphics

In the next part we take care of a higher resolution of our LED display. Until then, have fun with displaying your own BMP files on the LED Display.
