Description
With this housing kit you can mount the well known Feather microcontroller boards from Adafruit, Sparkfun etc. on a DIN rail in control cabinets. The Feather board is not included in this housing kit.
Feather boards are available from different manufacturers and for different platforms:
- RP2040
- ESP32
- ESP8266
- Cortex M0
- Cortex M4
- SAMD51
- STM32
- nRF52840
- uvm.
ArduiBox Feather is a compatible DIN rail enclosure set for all microcontroller and expansion boards (wings) of the above mentioned manufacturers.

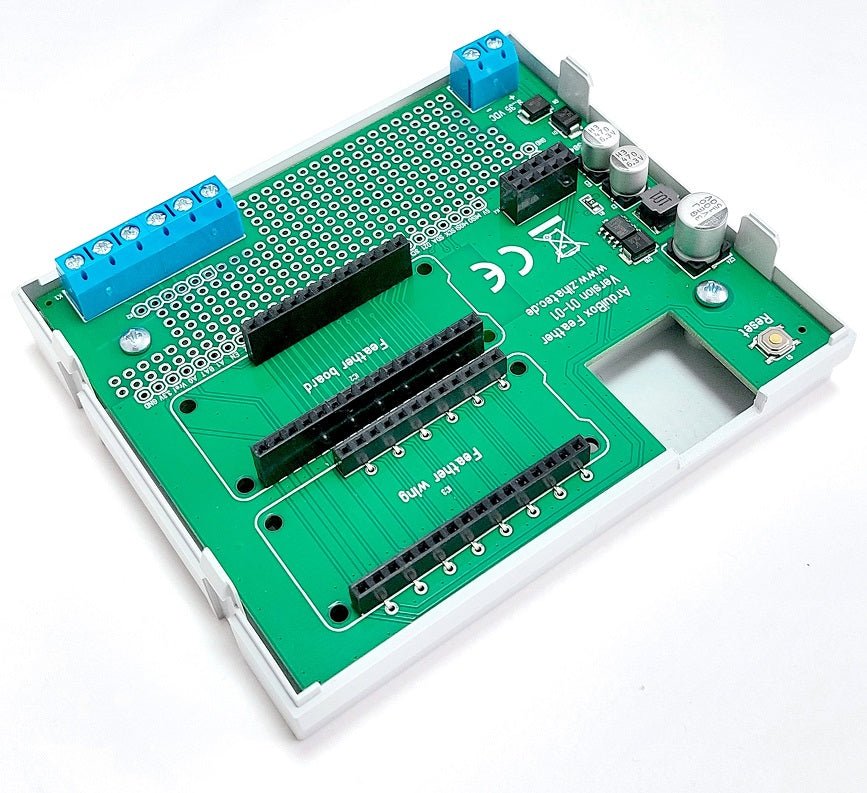

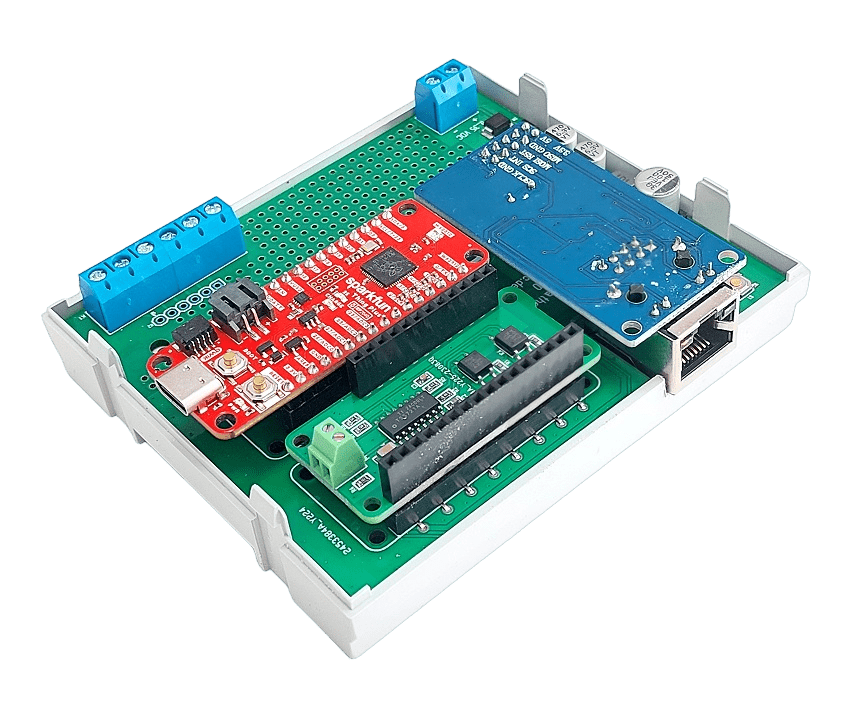

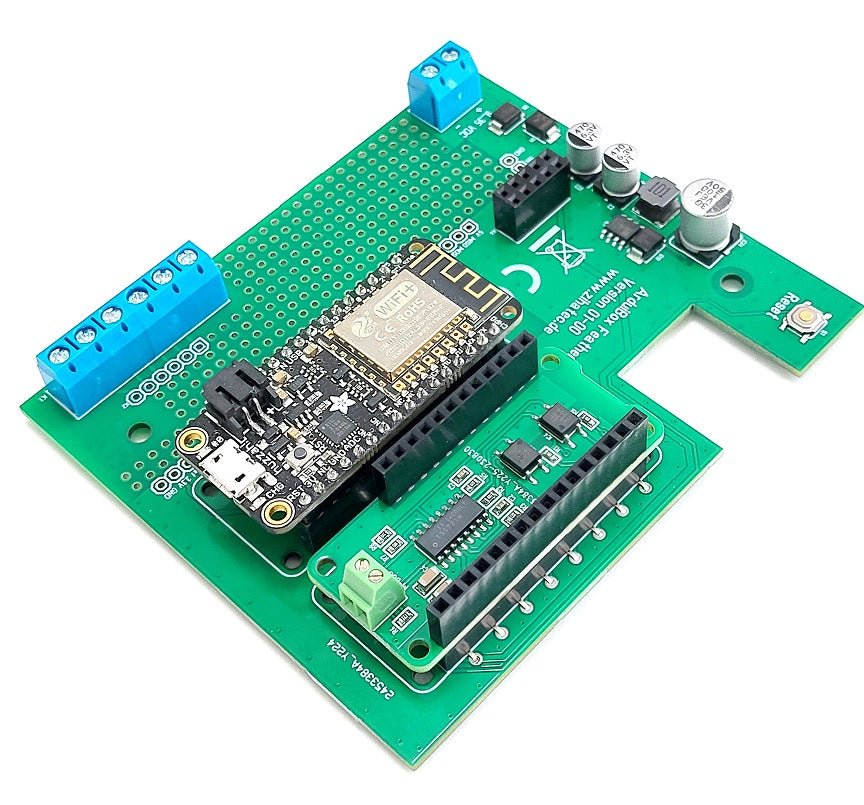

The core is a board with integrated power supply and experiment board, which offers a slot for the microcontroller board and another slot for an expansion board - so called Featherwings. Of course, additional featherwings can be plugged onto the microcontroller board, provided that the microcontroller board is equipped with appropriate headers. Furthermore a Ethernet module with the well-known W5500 Ethernet controller can be integrated.
Everything fits into a 6TE top-hat rail housing, which is available with different front panels.
Product features:
- Top-hat rail housing with 6 pitch units
- transparent front panel
- printed circuit board with plug-in option for Adafruit Feather Boards or Sparkfun Thingplus
- slot for an optional FeatherWing
- additional exclusive slot for optional Ethernet module
- pre-assembled 5V switching regulator (input voltage 9..30V via separate supply terminal)
- breadboard / breadboard area for own circuit parts
- all GPIOs of the Featherboard are led out on labeled pins next to the breadboard
- 2 additional 3pin terminals next to the breadboard for own circuits
- unused terminals are protected by breakout covers on delivery
- Reset button on board
