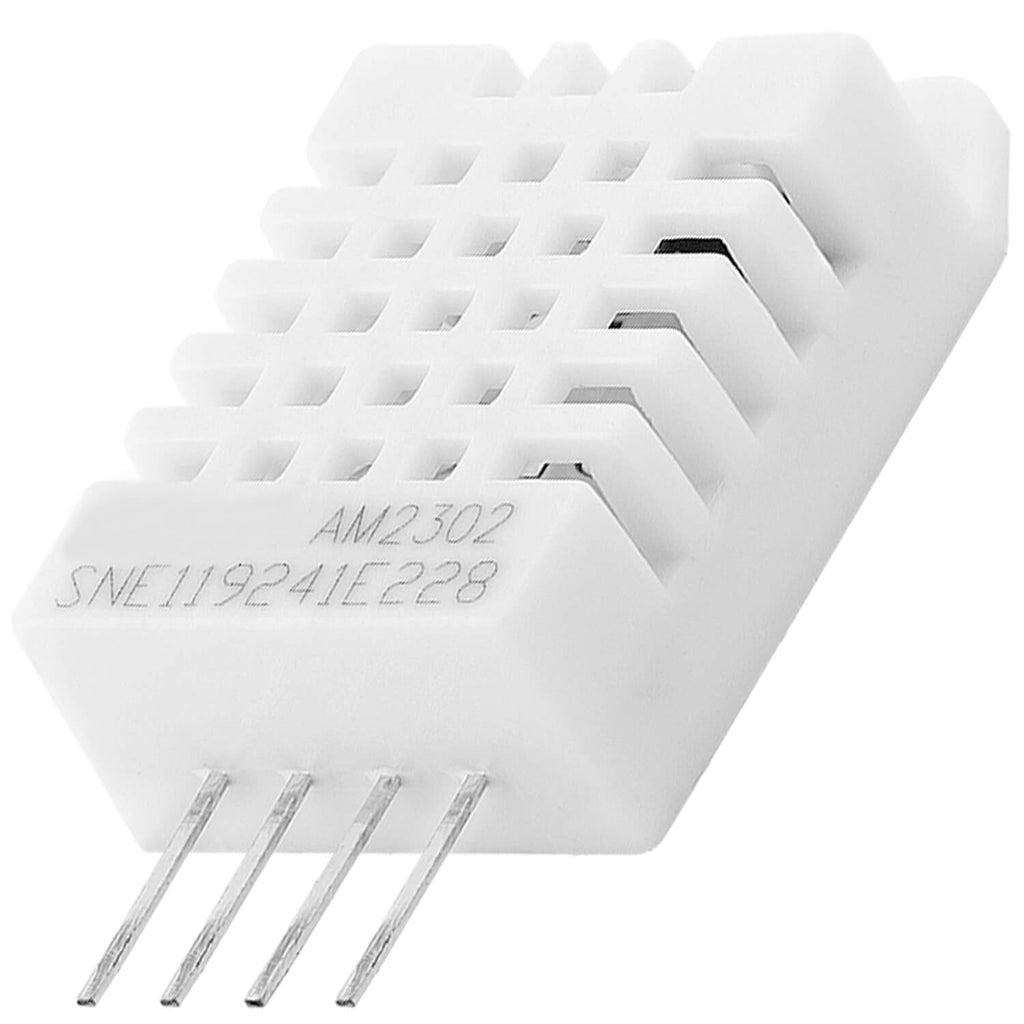

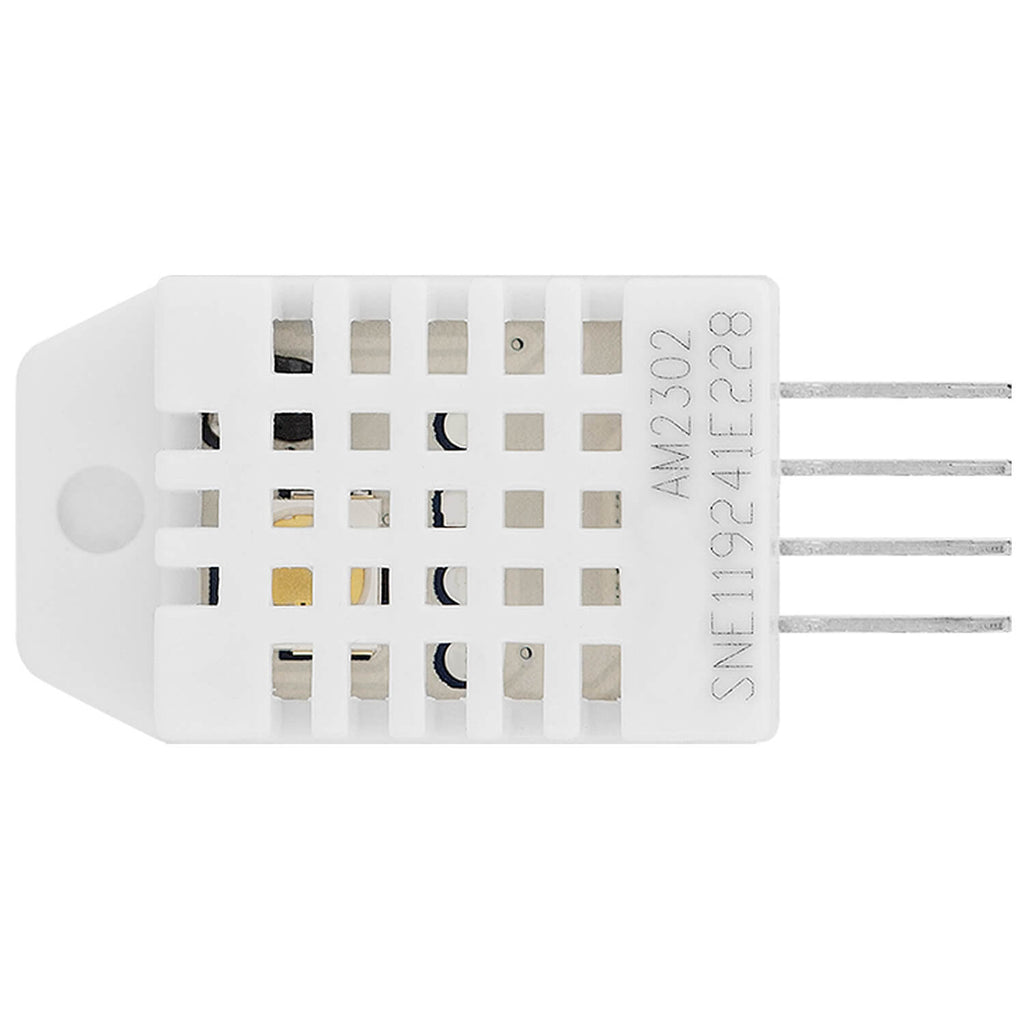

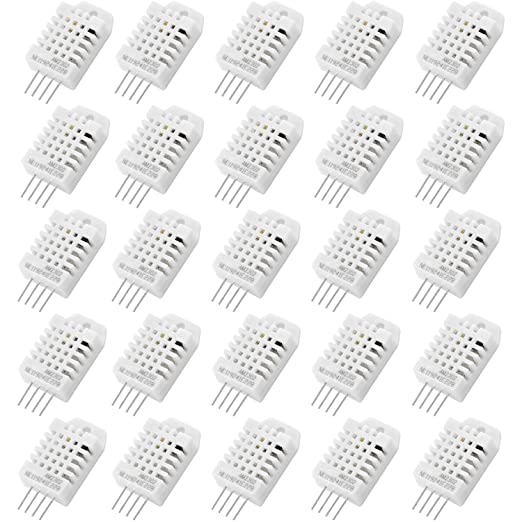

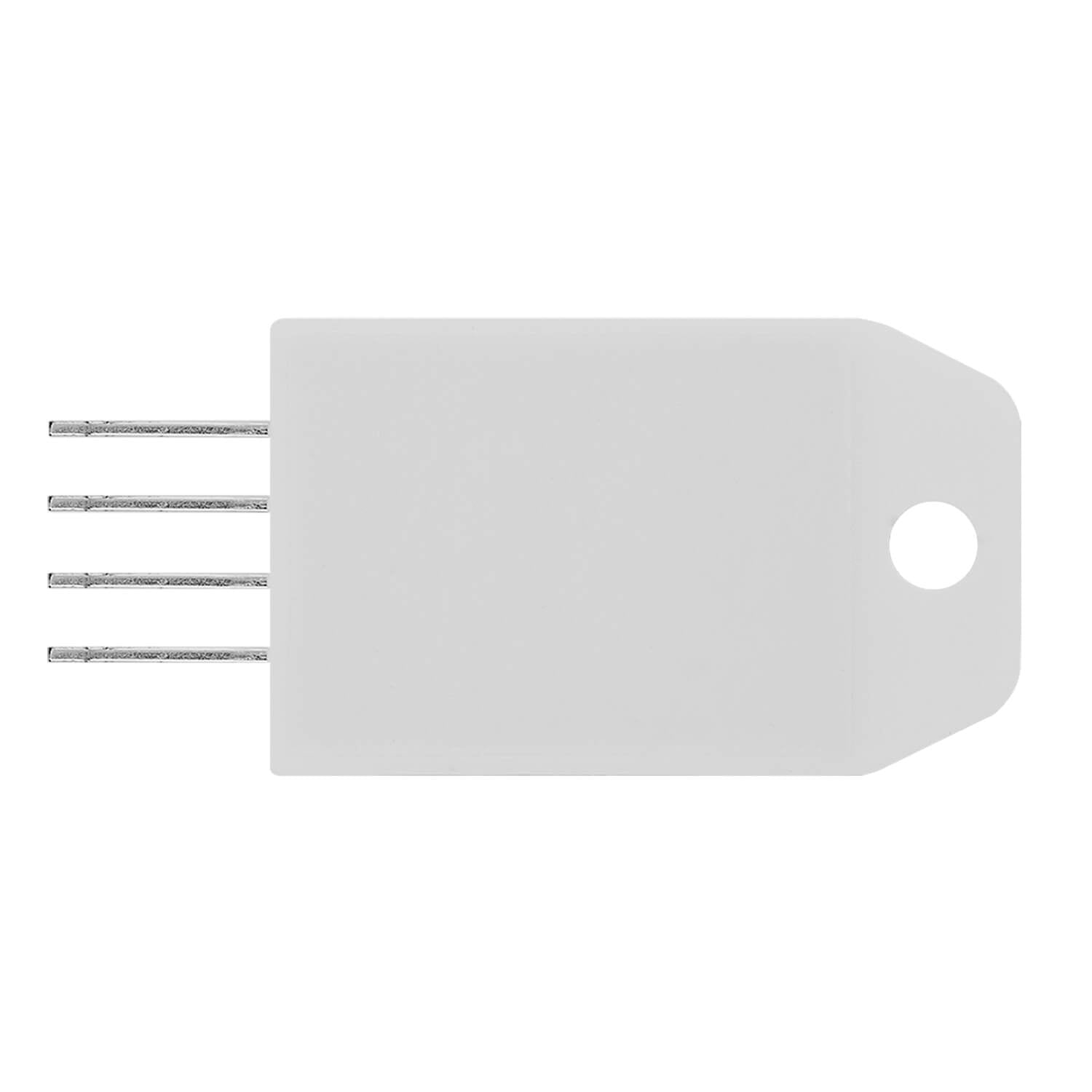

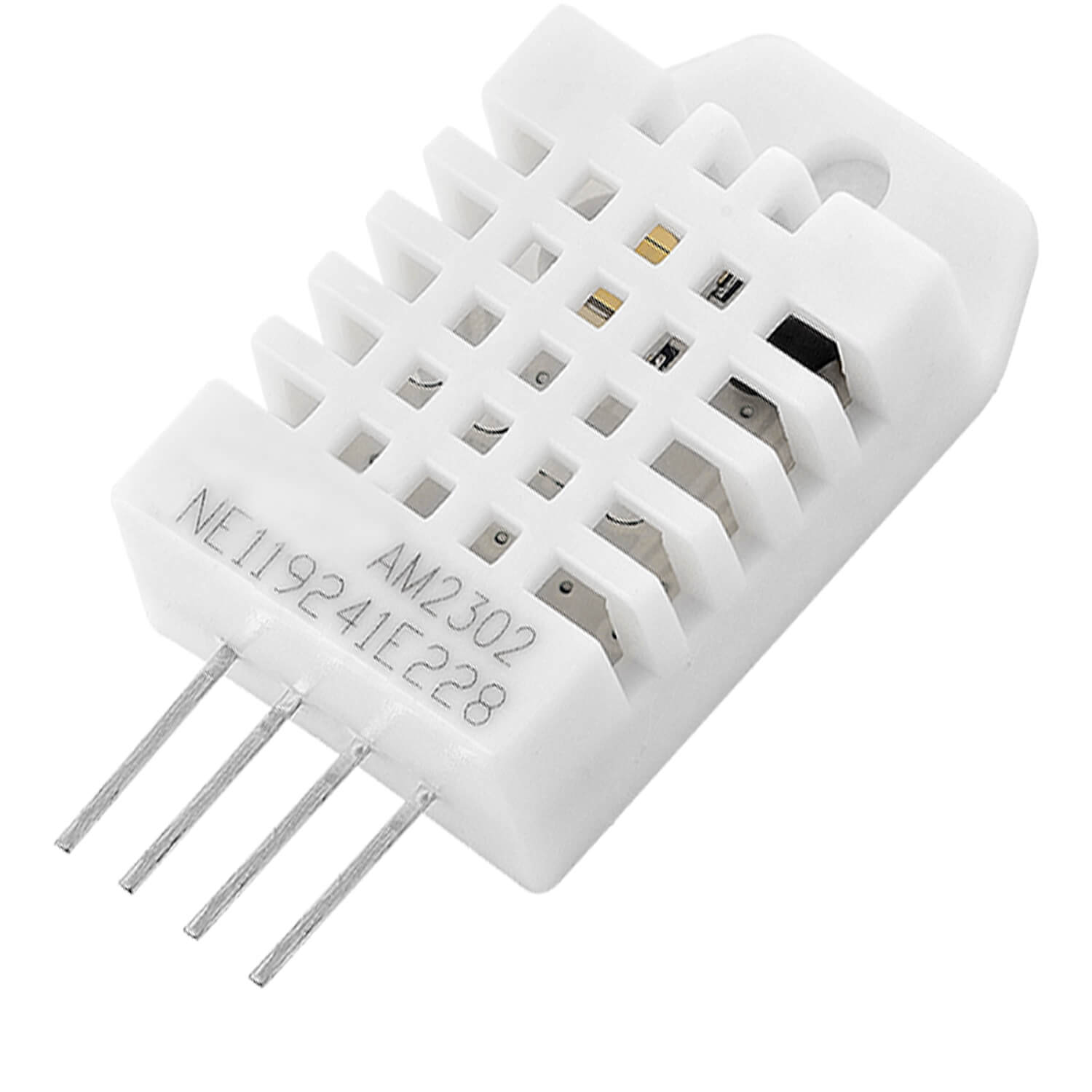

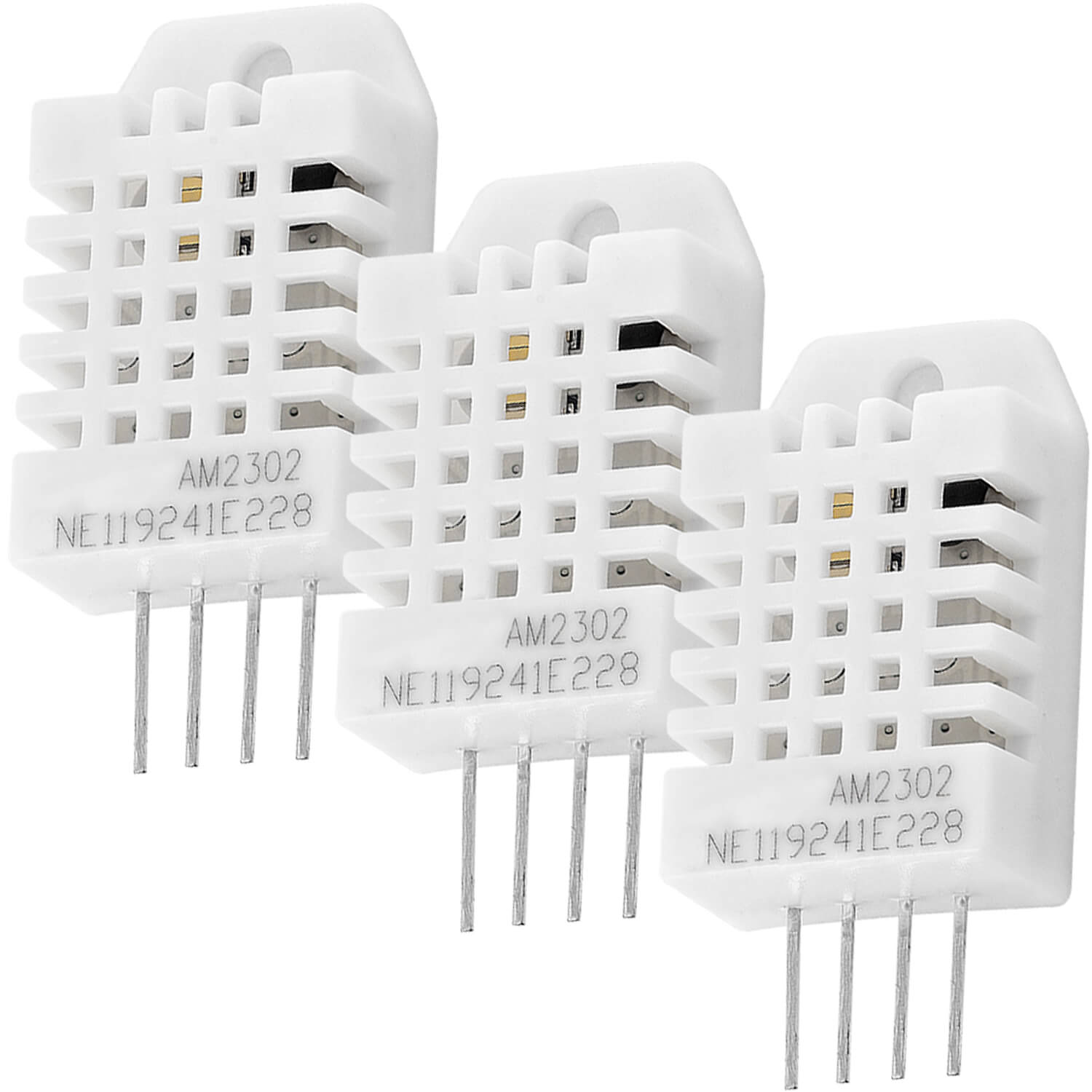

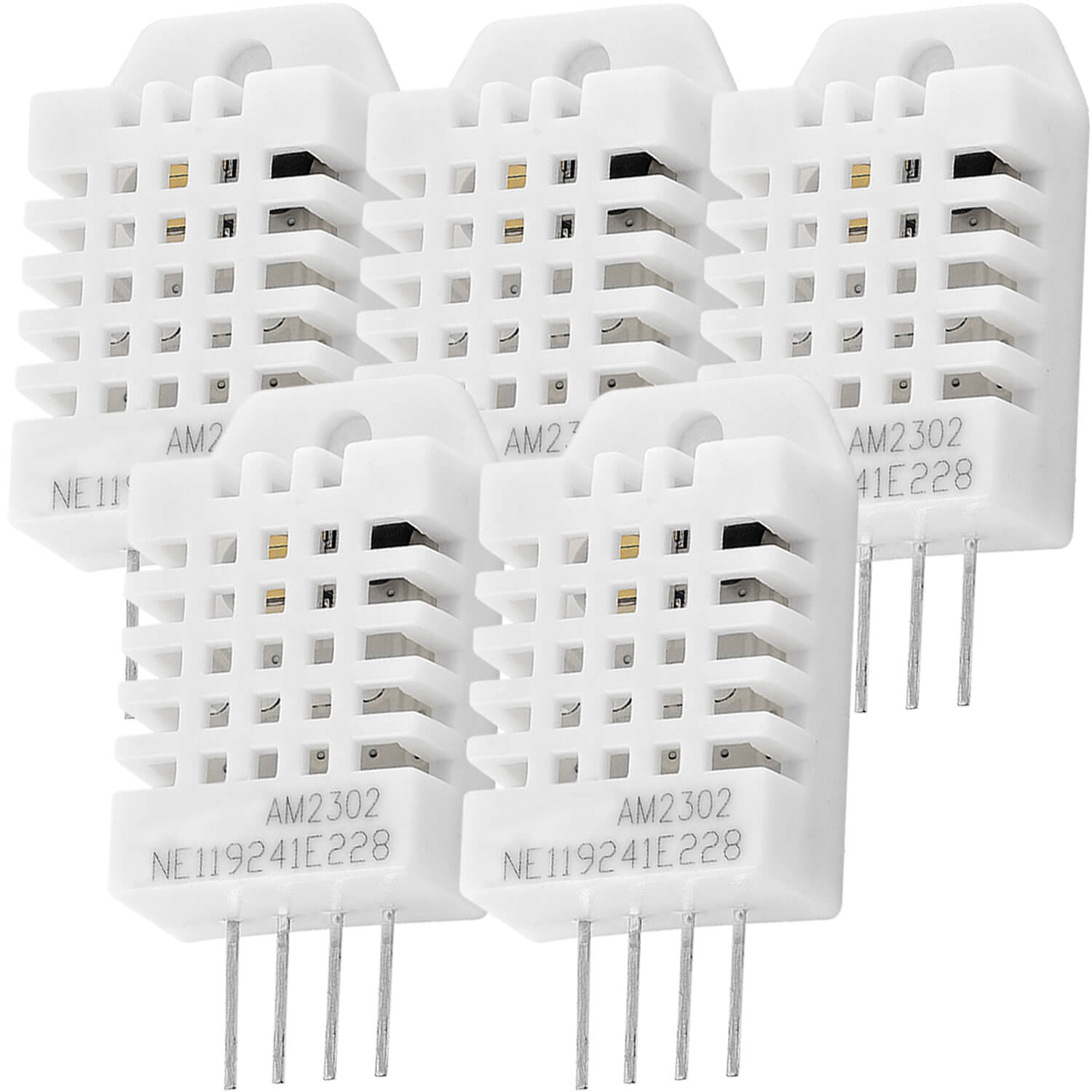

DHT22 AM2302 Temperature sensor and humidity sensor


Select quantity discount: 1x DHT22
Price:
Sale price£8.00

Tax included

Stock:
In stock (52 units), ready to be shipped

✔️ The DHT22 is a reliable sensor for determining temperature and humidity.
✔️ Since the sensor can be operated with 3.3V as well as 5V, it is suitable for connection to all common boards like RN-Control, Raspberry Pi and all other microcontrollers.
✔️ Besides the operating voltage, only one port needs to be connected to the sensor.
✔️ The output is serial as a digital bit sequence. This makes the sensor ideal for monitoring the indoor climate or setting up a weather station.

Important downloads and links

Description

The AZDelivery DHT22 is a reliable sensor for determining temperature and humidity. As the sensor can be operated with both 3.3V and 5V, it is suitable for connection to all common boards such as RN-Control, Raspberry Pi and all other microcontrollers.

In addition to the operating voltage, only one port needs to be connected to the sensor.

The output is serial as a digital bit sequence. This makes the sensor ideal for monitoring the indoor climate or building a weather station.

Special features

  • Compared to the DHT11 temperature sensor, this module enables greater precision in temperature and humidity measurement.
  • You do not need any additional components to integrate the sensor into your projects.
  • Thanks to its small dimensions, low power consumption and long transmission distance (100 m), the AM2302 is suitable for all types of harsh operating conditions.

Technical data

Model DHT22
Dimensions 15 x 25 x 7.7mm
Power supply 3.3 - 6V DC
Output signal Digital signal via single bus
Sensor element Polymer humidity capacitor
Measuring period 2s
Accuracy +-0.5Celsius / +-2%RH (Max +-5%RH) (temperature and humidity)
Resolution 0.1Celsius / 0.1%RH (temperature and humidity)
Long-term stability +-0.5%RH/year

Digital signal collection technology

The AM2302 outputs a calibrated digital signal. It uses exclusive digital signal collection technology and humidity measurement technology that ensures its reliability and stability.

Quick Start Guide

When you purchase one of our high-quality products, you will also receive an included e-book for a quick introduction to the world of microelectronics.
