Description
The AZDelivery RTC module with DS3231 chipset is not only characterized by its high-precision clock crystal, it also measures the temperature every minute in order to adjust the oscillator for correction purposes.
Wiring is very simple thanks to the I2C bus used and the IIC address can of course be changed. An additional output for the 32kHz signal is also available and can be activated via a register. The RTC is downwards compatible and can also be used with the library for the DS1302.
Special features
- The real-time clock offers programmable time-of-day alarms and a calendar that can be set to a square wave output. Address and data are transmitted serially via a bidirectional I2C bus.
- The module keeps track of the time even when it is not supplied with power.
- The integrated oscillator improves the long-term accuracy of the module.
Technical data

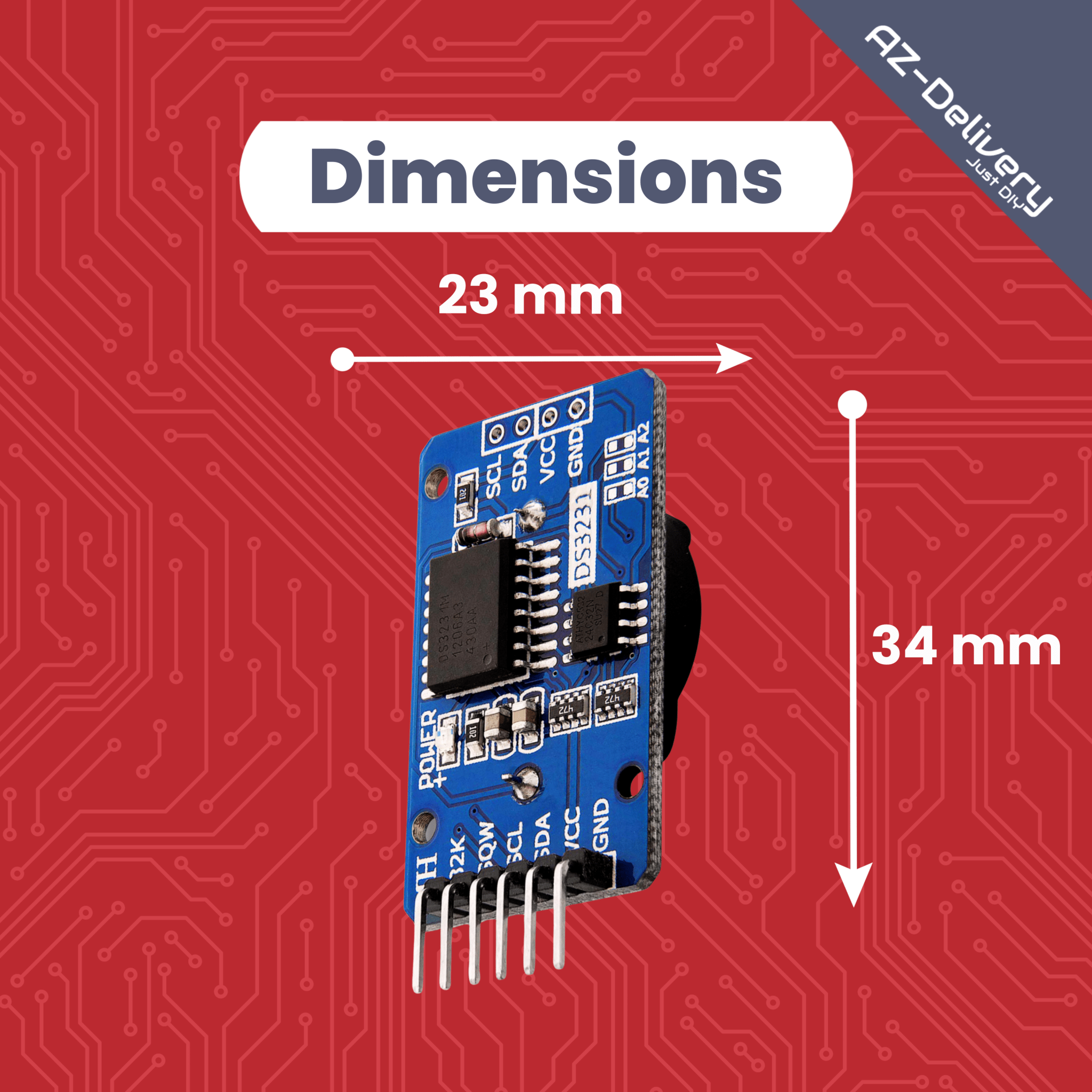

| Dimensions | 34mm x 23mm x 18mm |
| weight | 8 g |
| Memory chip | AT24C32 |
| Clock chip | DS3231 RTC |
| Digital temperature sensor | ±3°C accuracy |
| Time of day alarm | 2 |
| Communication interface | I2C |
| Operating temperature | 0 to +70 ℃ |
| Programmable signal | 32kHz [Output] |

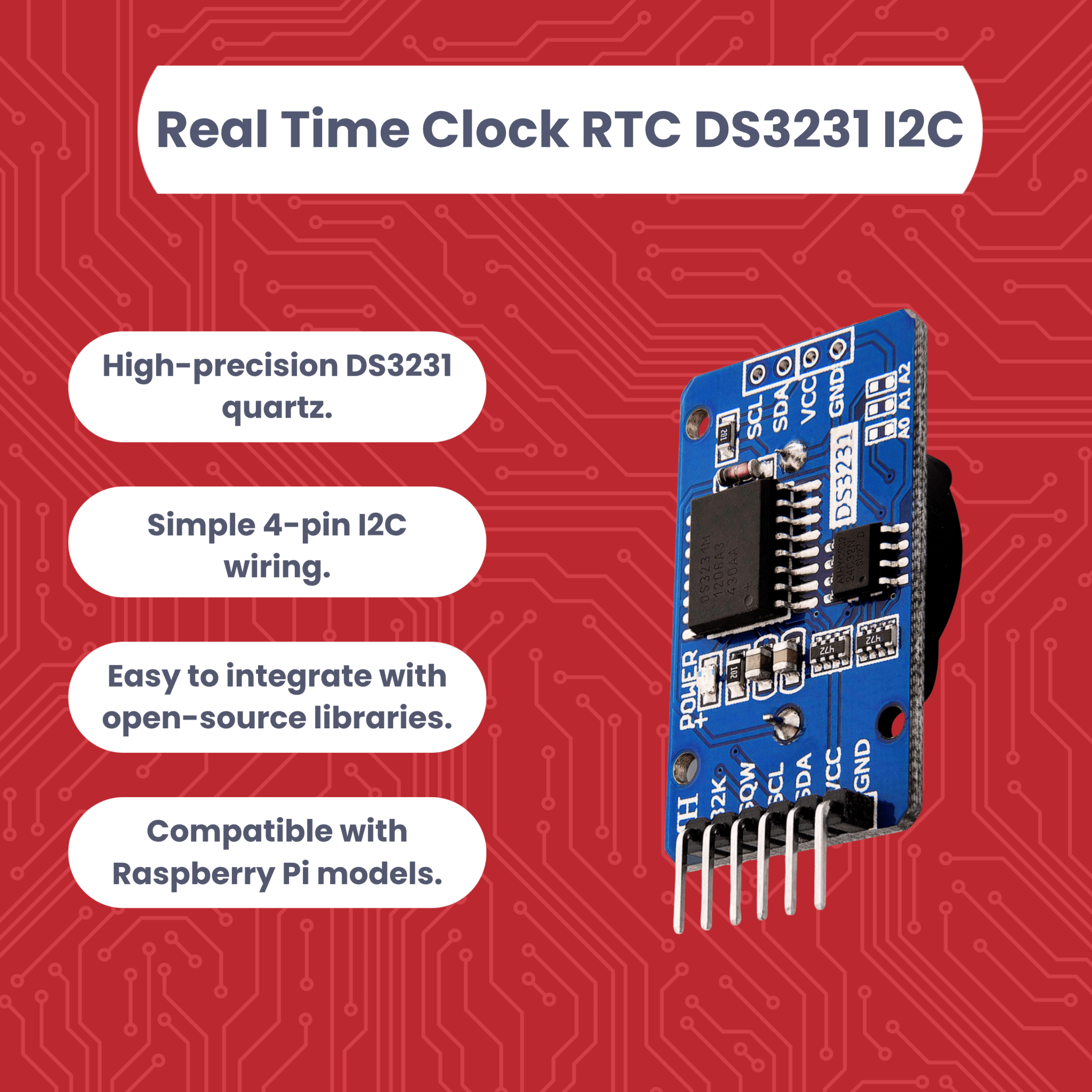

RTC DS3231 I2C
Easy integration into projects thanks to ready-made open source libraries. Our Real Time Clocks are compatible with all common Raspberry models.

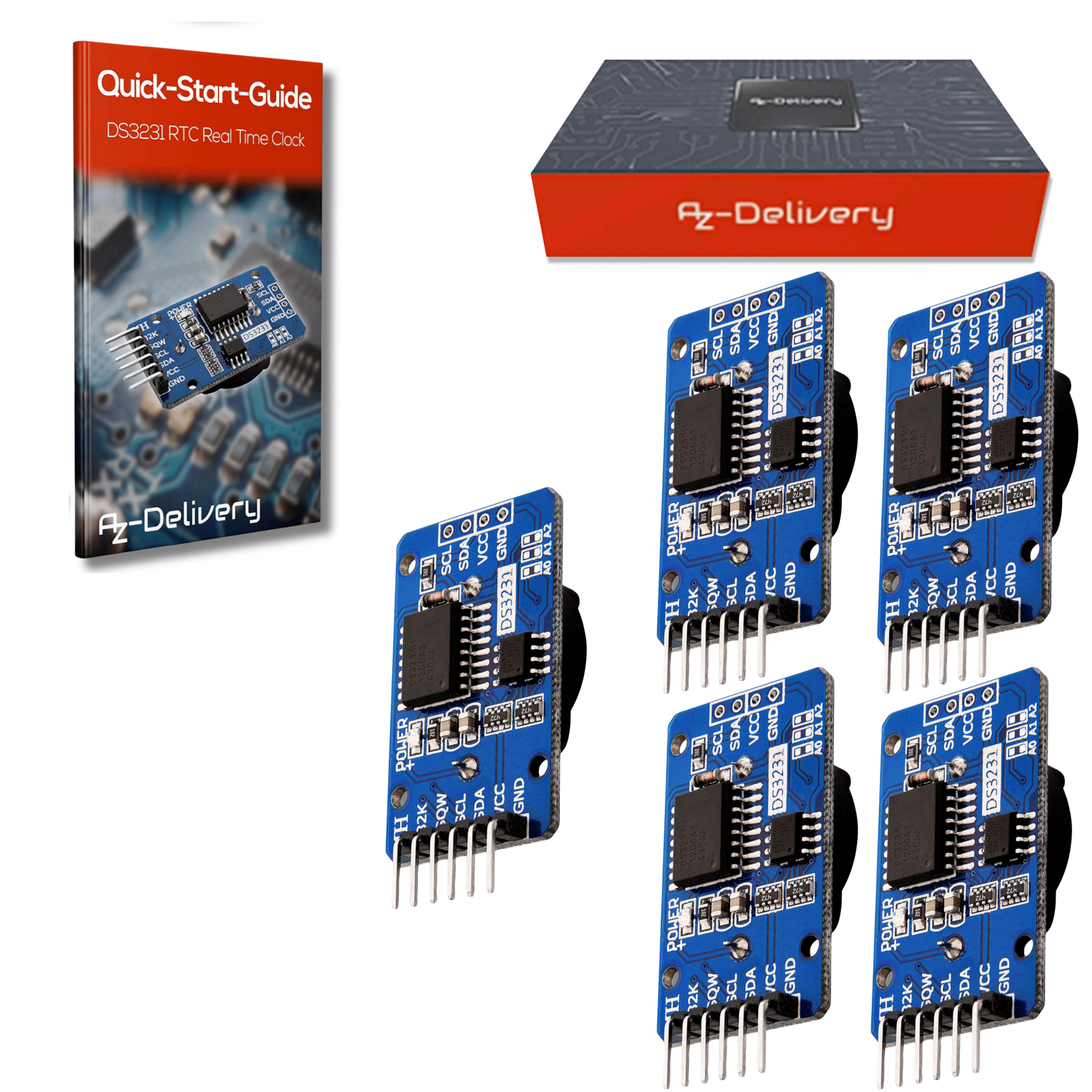

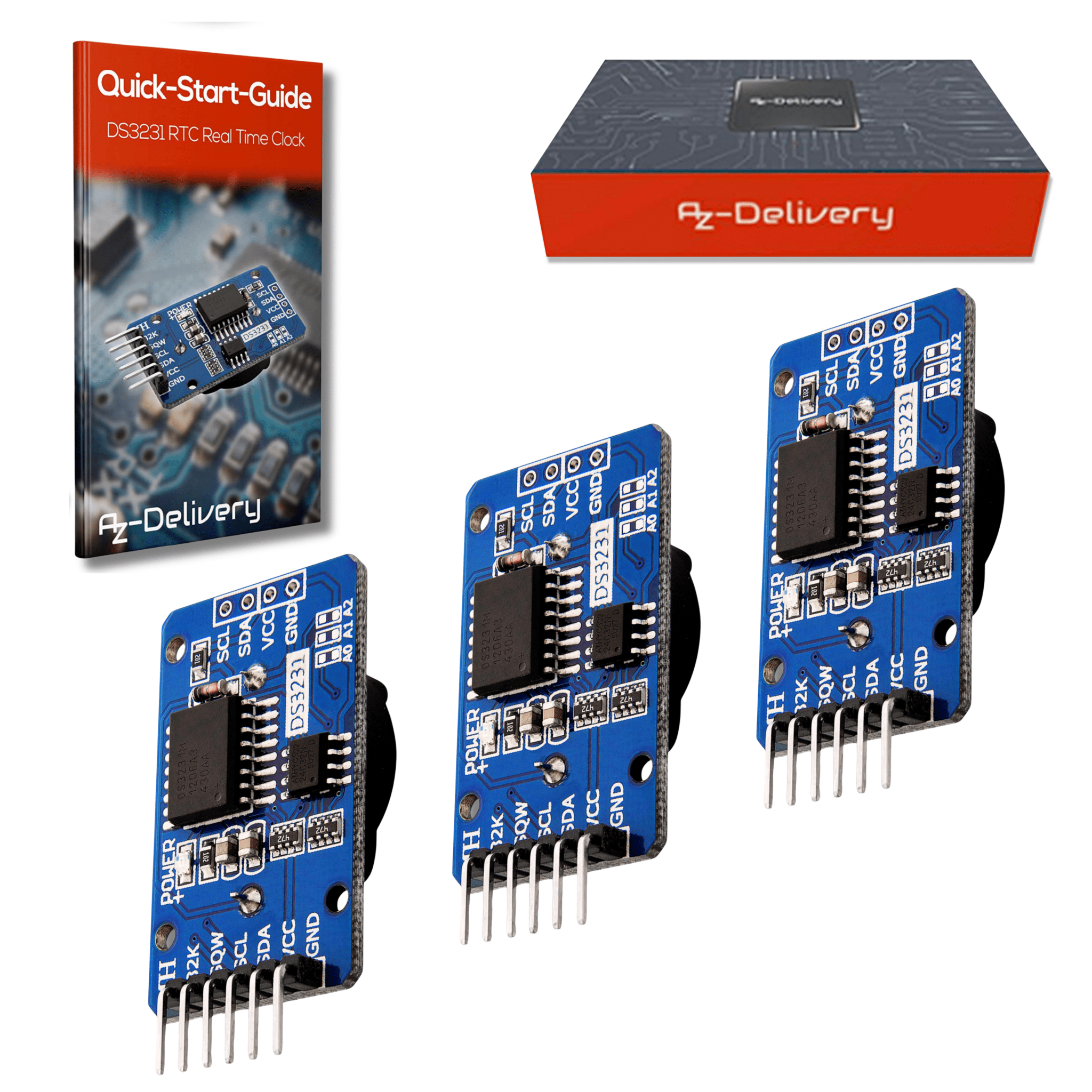

Quick-Start-Guide
When you purchase one of our high-quality products, you will also receive an e-book for a quick introduction to the world of microelectronics.
