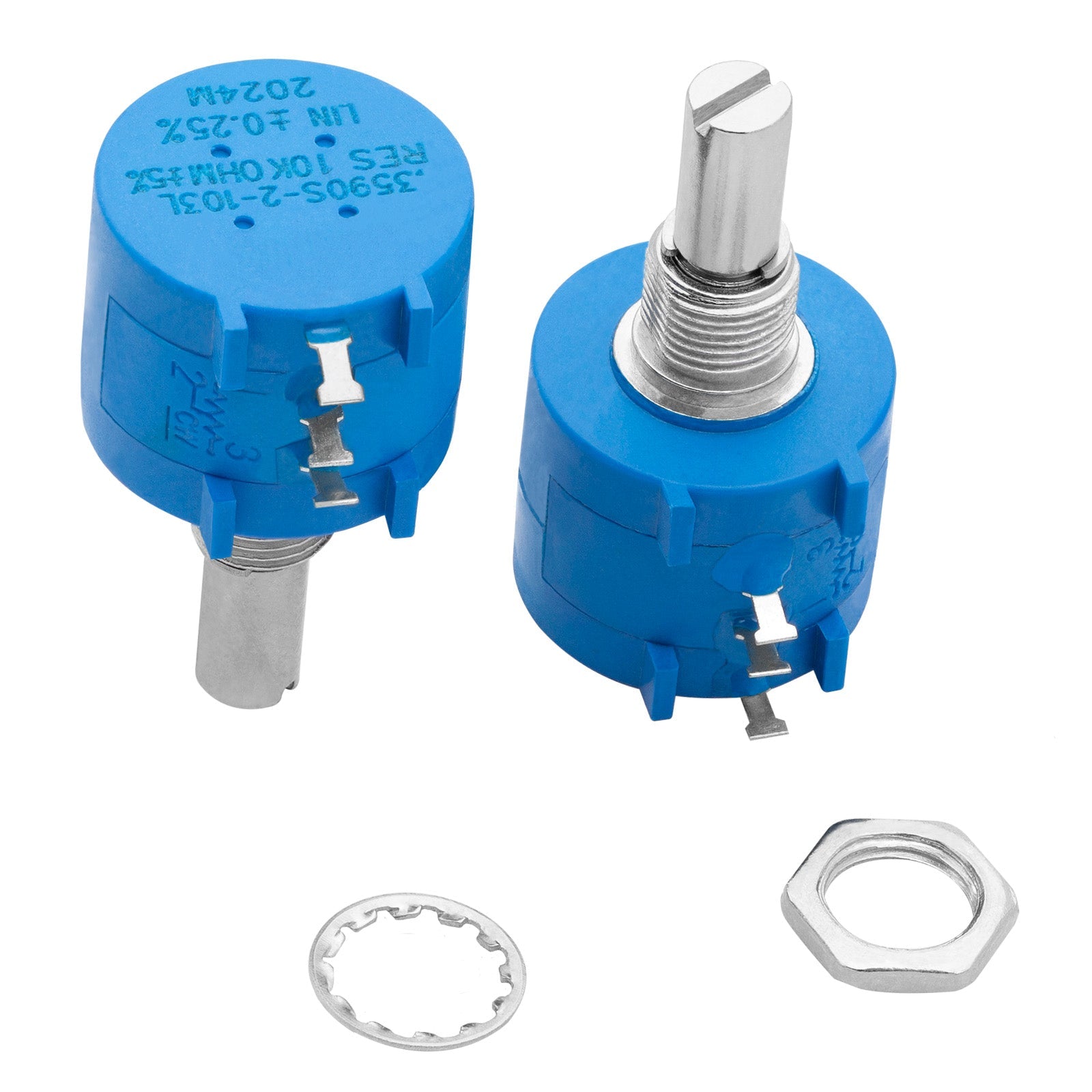

Description
Independent linearity accuracy makes this module a good choice for your electronics project. High precision combined with modern and user-friendly design makes this product easy to use.
Special Features:
- Resistance: 10K Ω
Windings: 10 windings
Shaft diameter: 6.3mm, mounting hole: 10mm
Resistance tolerance: ±5%, independent linearity accuracy: ±0.25%.
Lifetime: 1,000,000 revolutions
Technical data
| Revolutions | 10 |
| Lifetime | 1.000.000 revolutions |
| Power | 2W |
| Resistance value | 10K Ohm |
| Resistor tolerance | ± 5% |
| Linearity | ± 0,25% |
| Shaft diameter | 6mm/0.24" |
| Thread diameter | 9mm/0.35" |
| Total length | 40mm/1.6" |
| Lifetime load | 1000 hours |
| Mechanical angle | 3600 ° ± 10 ° |
| Operating temperature range | -55 ° - 125 ° |
| Size (without hearing wave) | 22x1 9mm/0.9 "x 0.7"(DxH) |
Possible risks:
The potentiometer has an extreme durability. However, it should not be stored in rooms with extremely hot temperatures.
