- Night vision camera - See what's happening even in the dark. Operating Video: https://www.youtube.com/watch?v=HOCA60gGHAs; Instruction Manual: https://www.waveshare.com/w/upload/6/61/RPi-Camera-User-Manual.pdf.
- HD Video Infrared camera module - Enjoy sharp 1080p video. It has two high-intensity infrared LED lights for nighttime recording and monitoring
- 5MP OV5647 Camera-The effective distance range for night vision is 1-1, 5 M.; focal length: 3.6 mm (adjustable); Shooting Angle: 60 Degrees; Sensor optimum resolution: 1080p
- Security Webcam for Raspberry Pi - This camera module is compatible with Raspberry Pi Model 4B/3B+/3B/2B+/2B/B. If you have any problems, please click "Seamuing" to send us an email. We will give you a satisfactory solution
- [Parameters of the infrared light]: Infrared light: can fill the flash and its wave range is 850 nm.
- weitere Produktdetails
Wichtige Downloads & Links

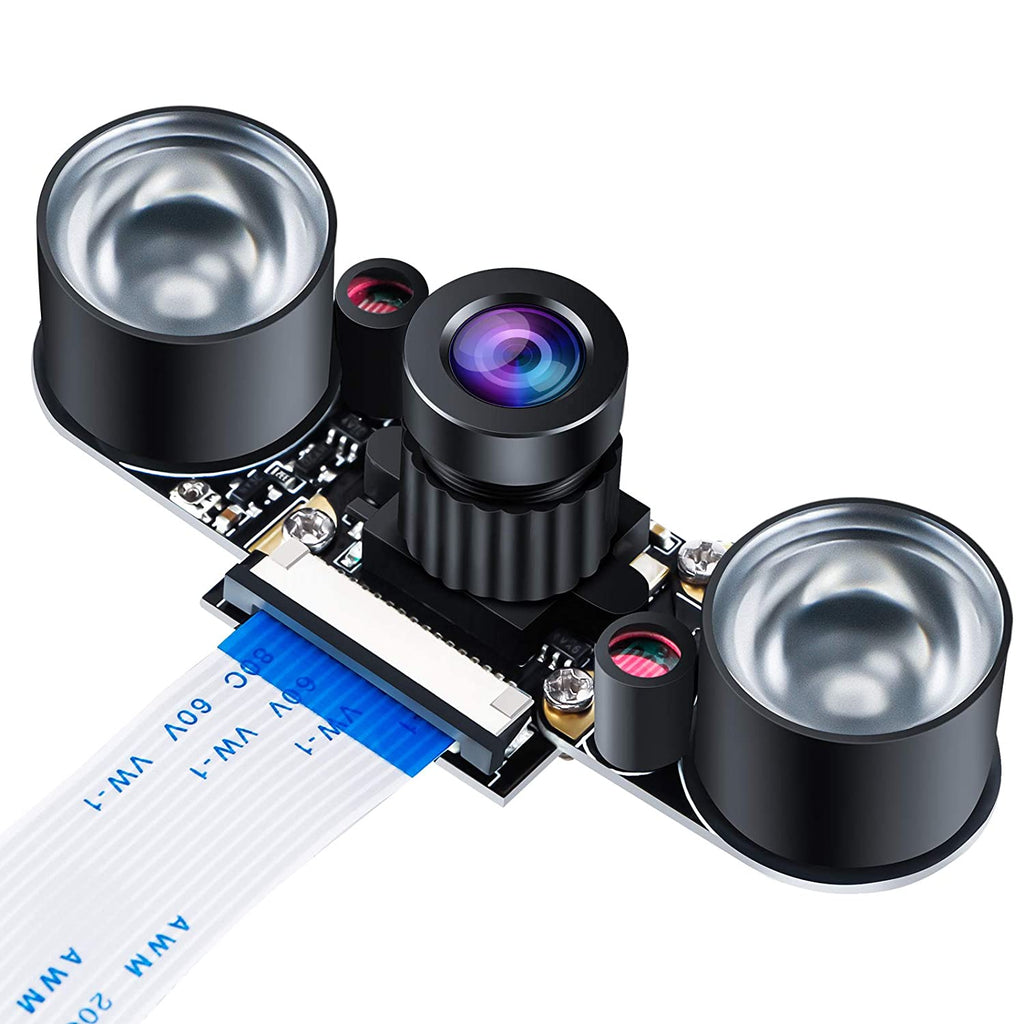

This is an RPI camera that supports night vision and focus setting. It is connected to the Raspberry-Pi via the CSI interface. It is usually used as a night monitoring camera or theft protector camera.
Many fans use it to craft their own project.
The working principle of the night photography project is that in the dark environment without visible light or weak light, the infrared light emitting device is primarily projected the infrared light on the object and the infrared light is reflected by the object. Enter the lens for imaging.
5 Megapixel OV5647 sensor.
CMOS size: 1/4 inch
Aperture (F): 1.8
Focal length: 3.6 mm (adjustable focal length)
Recording angle: 60 degrees
Optimum resolution of the sensor: 1080p
The effective range of distance for night vision for this product is 1-1.5 M.
Infrared light: Can fill flash and its wave range is 850 nm.
Photograph: to detect the ambient intensity.
Adjustable resistance: Adjust the ambient intensity threshold of the infrared light automatically.
4 screw holes: Serves for attachment and offers an output power of 3.3 V.
1 * RPI infrared camera
2 * Infrared light
1 * 15 pin FFC cable
