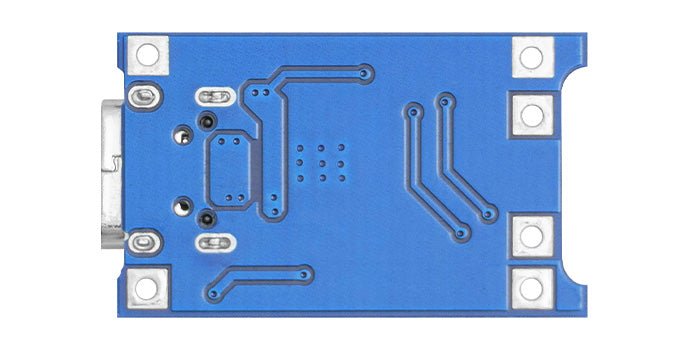

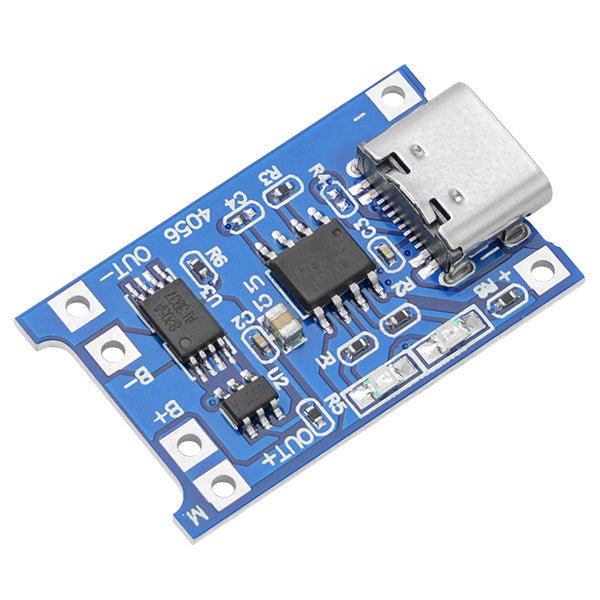

TP4056 Battery Charging Module - USB Type C, Protection Circuit, LED Indicators - Essential for your Li-Ion or LiPo single cell batteries.

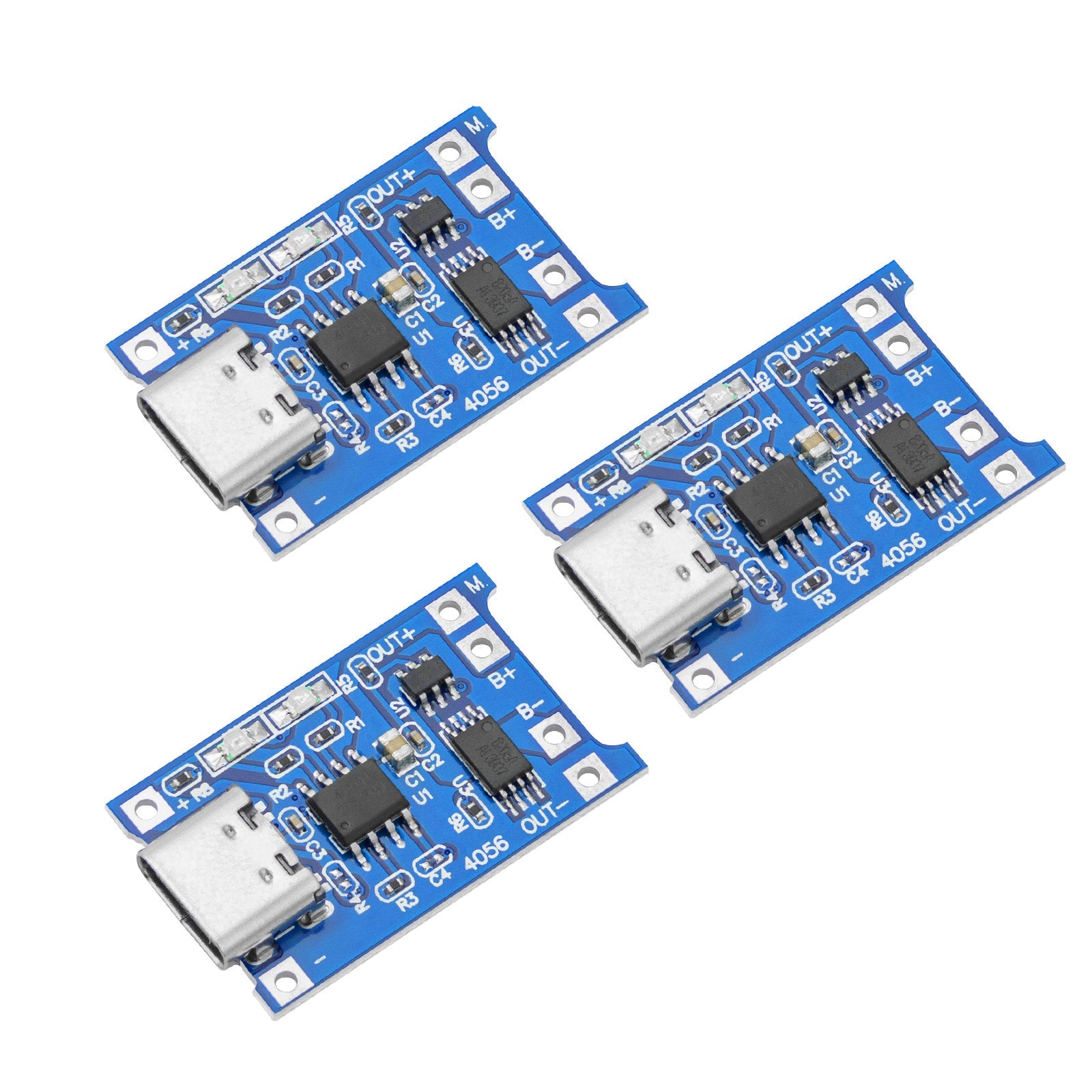

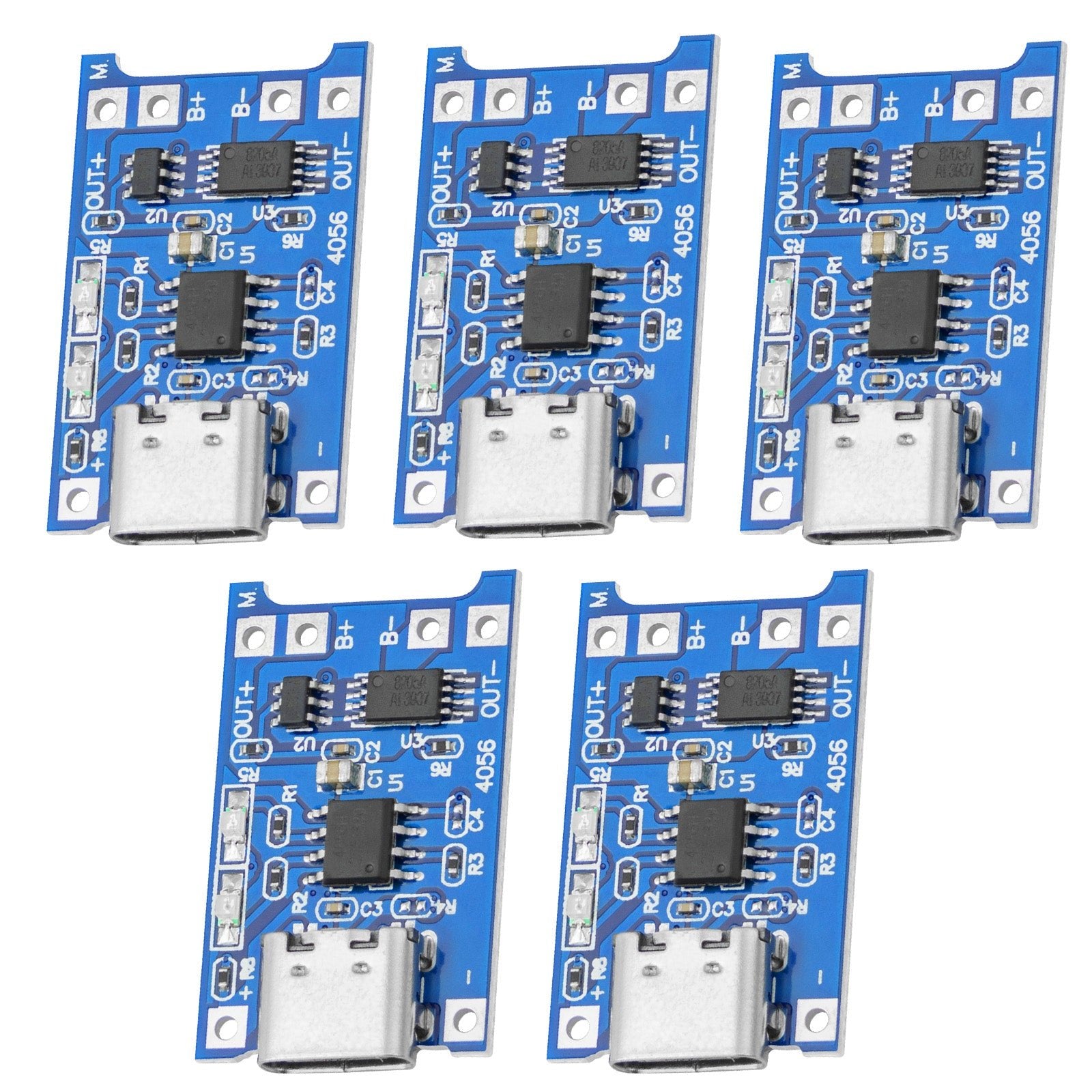

Mengenrabatt auswählen: 1x Set
Sale price£5.00

Tax included

✅Efficient battery charger TP4056 for charging Li -ion/Lipo and 18650 single cell batteries with a supply voltage of 4.5 - 5.5 V DC.

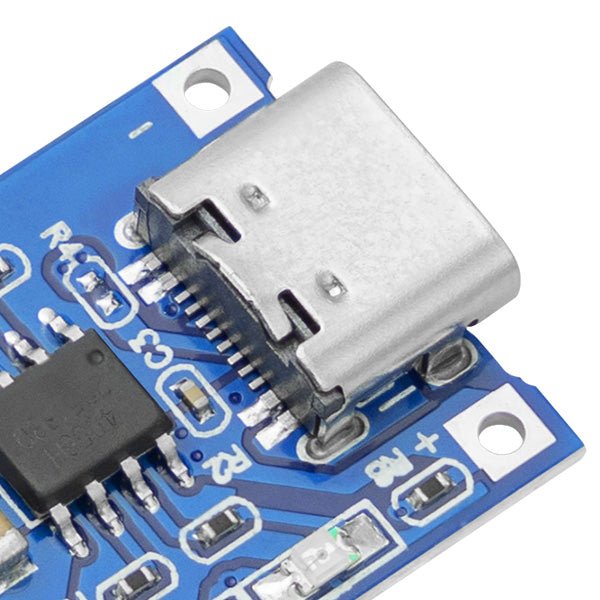

✅Has a USB Type C connection for versatile connection options and a protective circuit for safe operation.
✅LED display, red indicates that the load is running, blue indicates that the loading process is complete.

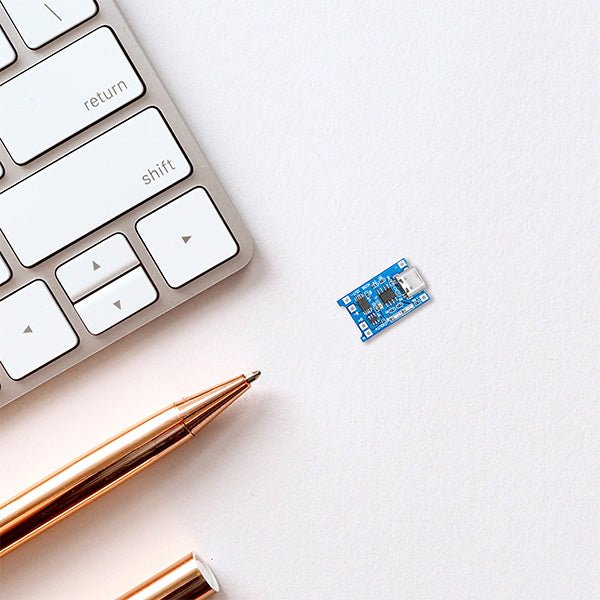

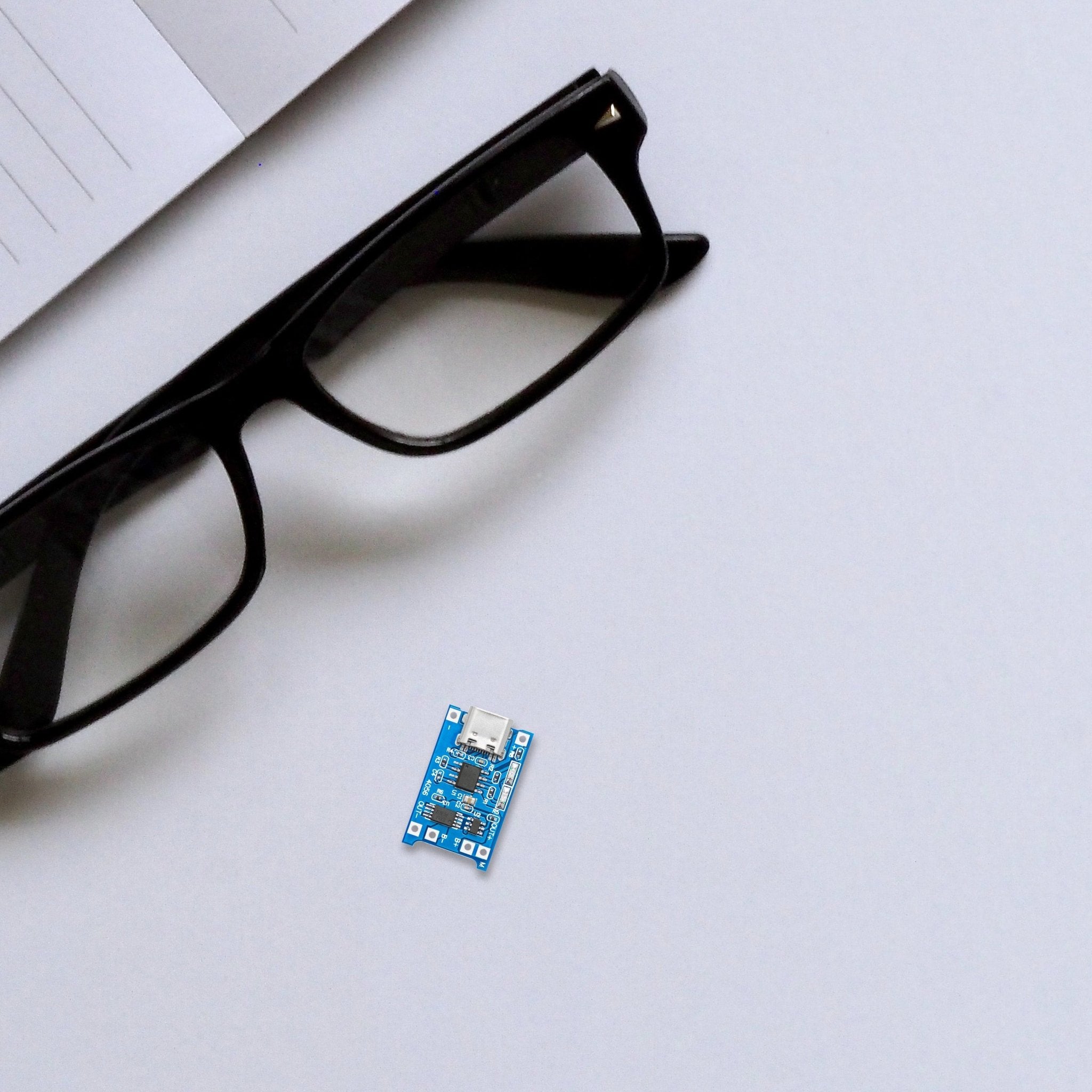

✅Compact dimensions (29 x 17.3 x 4.3 mm) and light design (~ 1.7g) makes it easier to integrate into your projects.

Important downloads and links


With the AZ-Delivery TP4056 battery charging module you can efficiently charge your batteries. This compact module is designed for charging Li-Ion or LiPo single cell batteries and features a USB Type C connector for wide compatibility.

The module uses a linear charging method that ensures optimal battery health by delivering a constant 1A charge current until the battery reaches a cut-off voltage of 4.2V. LED indicators provide a quick overview of the charging status: red for charging and blue when charging is complete.


  • Despite its compact size, this charging module offers robust short-circuit protection, ensuring safe use even in complex electronics projects. With a weight of only ~1.7 g and dimensions of 29 x 17.3 x 4.3 mm, it can be easily integrated into your projects without taking up unnecessary space.
  • Input voltage: 4.5 V-5V
  • Maximum charging current: 1000mA/li>
  • End of charge voltage: 4.2V +-1%

Other functions:

This module provides a variety of protection functions and improves the safety of the battery. It is characteristic of the input voltage.

Special Feature:

The device has an option that prevents overcharging and overdischarging of the battery, while controlling the charging current.
